End-of-Line Inspection and Packing Workstation PWS-1890 with Gravity Roller Infeed

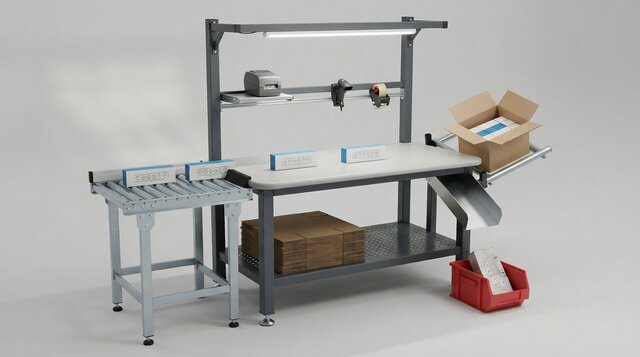

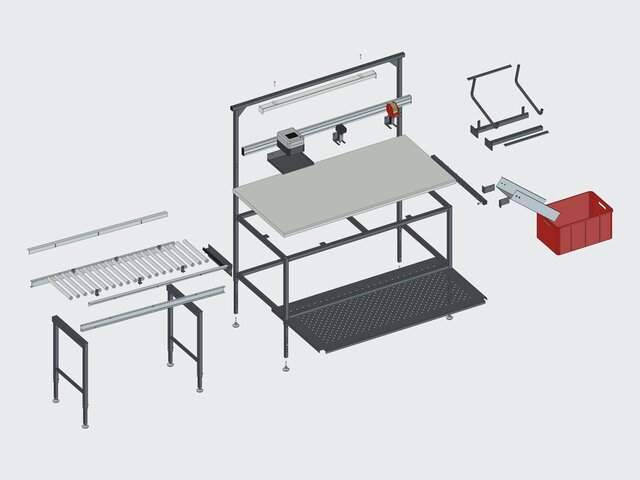

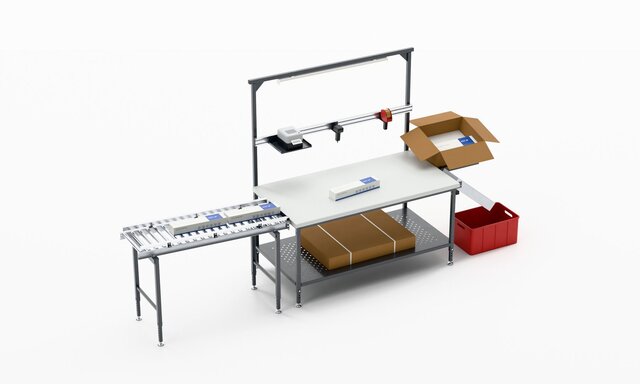

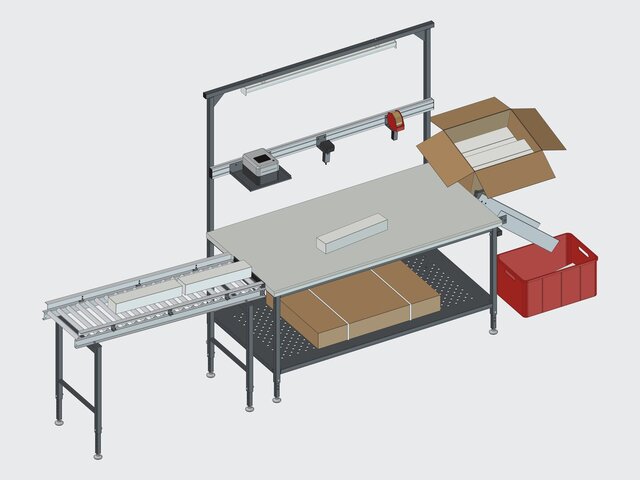

Packing workstation for small boxed products at the end of a production line: cases arrive on a gravity roller infeed, are inspected, scanned, labeled and packed into shipping cartons, with a reject chute for damaged boxes. Design features: - Bench frame welded from 1-1/2 in square steel tube, powder coated, 72 x 36 in laminate top with rounded front edge - Work height adjustable from 33 to 39 in in 1 in steps (telescopic legs), leveling feet - Gravity roller infeed, 5 ft section with 1-3/8 in rollers at 3 in pitch, 12 ga side frames, sloped 1/2 in per foot, two identical stands, side guides and EPDM bumper stop at the discharge - Rear gantry at 80 in with LED task light and a T-slot accessory rail carrying the label printer shelf, barcode scanner holder and tape gun bracket - Tilted shipping carton cradle and sheet metal reject chute into a floor bin, both on a side rail with holes every 2 in; the leg and column hole pattern is symmetric, so both can be fitted on either side - Perforated lower shelf for flat-packed cartons - Overall approx. 4209 x 968 x 2036 mm including the infeed conveyor Included: general arrangement drawing, bench frame weldment drawing and infeed roller conveyor drawing with bills of material, concept image, rendered views and a STEP model of the assembly. Third angle projection.
