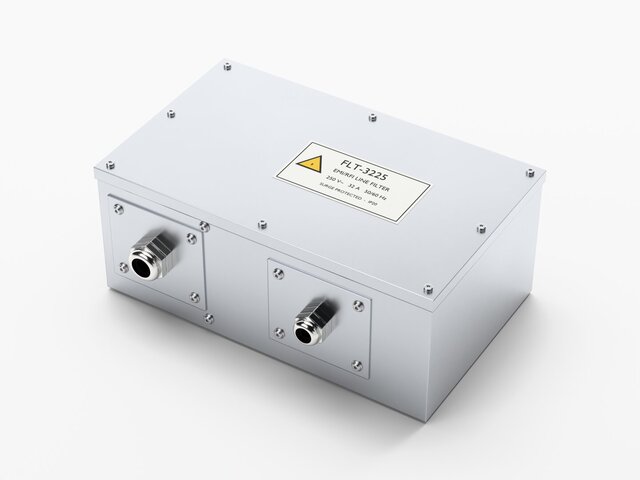

EMI/RFI Line Filter Enclosure FLT-3225 - 250 V~ 32 A with Surge Protection, Shielded Sheet Steel Box

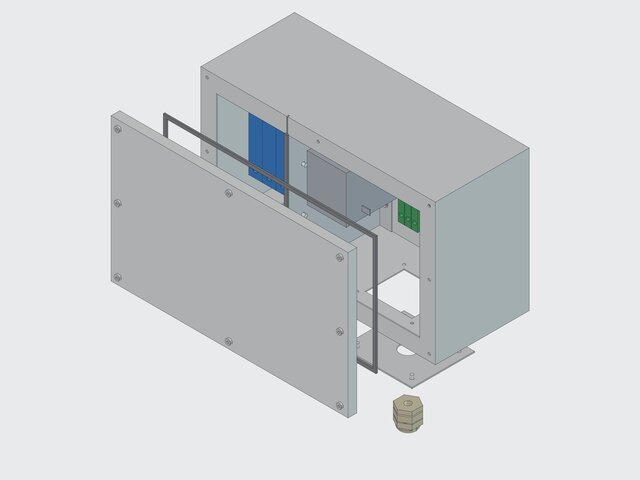

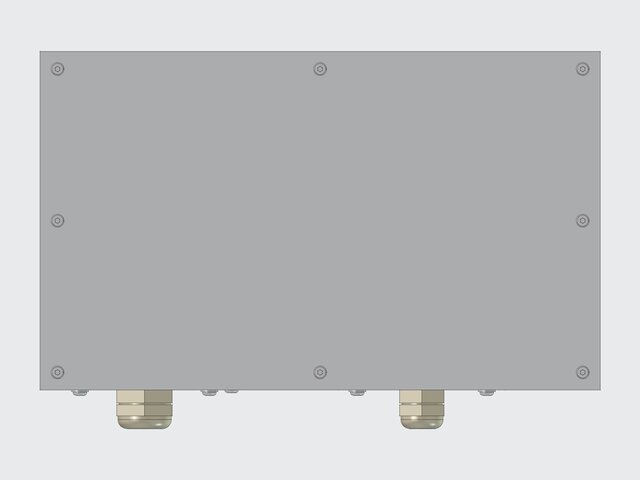

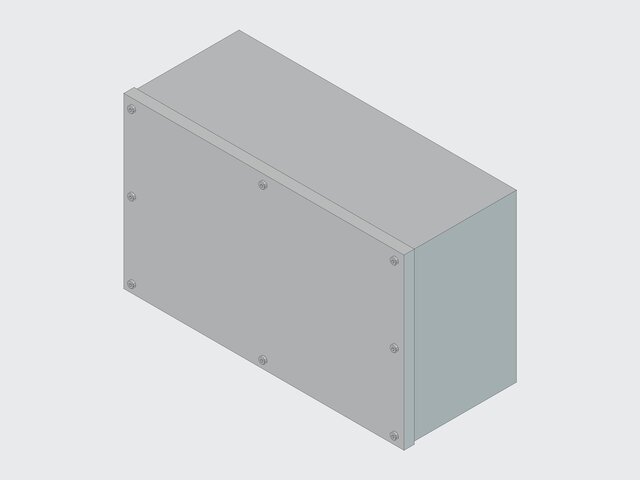

Shielded line filter enclosure, 250 V~ 32 A, with surge protection. Box 300 x 180 x 120 mm in 1.2 mm galvanized sheet steel. - Shielding partition separating the dirty side from the clean side, with the filter as the only passage - Slot in the front flange so the partition edge reaches the gasket plane - Stainless mesh-over-elastomer shielding gaskets on the cover and on the partition - Two-stage 32 A EMI filter in tin-plated can, 275 V 20 kA class II surge module on DIN rail - Two independent cable gland plates, keyhole mounting slots in the back, metal cable glands, welded M6 ground stud Files: STEP of the assembly, assembly drawing with bill of materials, and partition sheet metal drawing (PDF).
