Dual-Head Automatic Salt Filling Machine Design

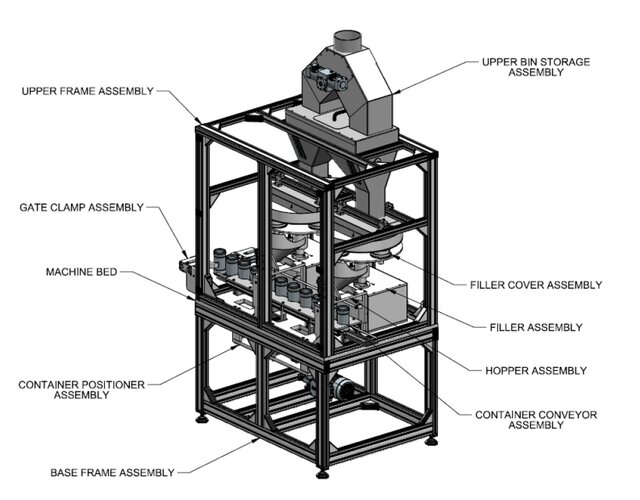

This project involved the mechanical design and development of a dual-head automatic salt filling machine engineered for high-speed, accurate dispensing of granular food products. The system was designed to improve production efficiency by simultaneously filling two containers while maintaining consistent fill accuracy and reliable operation. The machine incorporates a robust structural frame, dual filling stations, product feeding system, synchronized dispensing mechanisms, and provisions for integration with automated packaging lines. The design focused on ensuring smooth material flow, minimizing product spillage, and simplifying maintenance while maintaining a compact machine footprint. Special attention was given to component accessibility, modular assembly, and Design for Manufacturing (DFM) principles to facilitate fabrication, assembly, and long-term operational reliability. The machine was developed using a fully parametric CAD workflow, allowing efficient design modifications and customization for different container sizes, production capacities, and granular products. Scope of Work: Mechanical concept development Complete machine layout and assembly design Structural frame design Dual filling head mechanism design Product feeding system design Assembly verification and interference analysis Parametric 3D CAD modeling Manufacturing drawing preparation Design for Manufacturing (DFM) Photorealistic rendering Deliverables: Native SolidWorks assembly and part files STEP files Manufacturing-ready 2D engineering drawings Assembly drawings Bill of Materials (BOM) High-resolution rendered images CAD Software: SolidWorks Skills Demonstrated: Mechanical Machine Design Packaging Machinery Design Automation Equipment Design Industrial Equipment Design 3D CAD Modeling Parametric Modeling Assembly Design Structural Frame Design Design for Manufacturing (DFM) Engineering Drawings Bill of Materials (BOM) Product Visualization
