Diaphragm Pump Drive Mechanism

Report

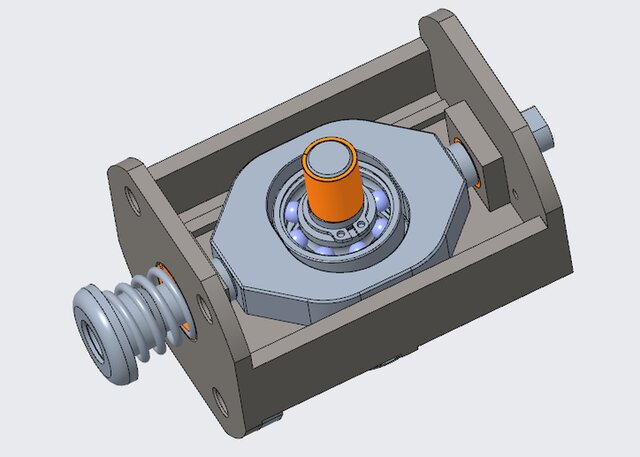

Mechanical design and 3D modeling of a diaphragm pump drive mechanism. The system features an eccentric shaft configuration that efficiently converts rotational motion into linear translational motion to actuate the diaphragm. Developed in PTC Creo Parametric with a focus on optimized kinematics, low wear, and high structural reliability.
Published
in 3D Modeling Design Mechanical Engineering Creo Design Services
creo mechanism 3d-modeling
Rendering Images
