Dashboard Air Vent DAV-01 - Adjustable Vanes, Thumb Wheel, Snap-Fit Housing

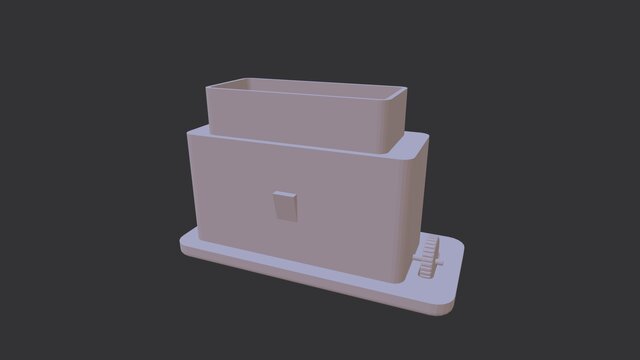

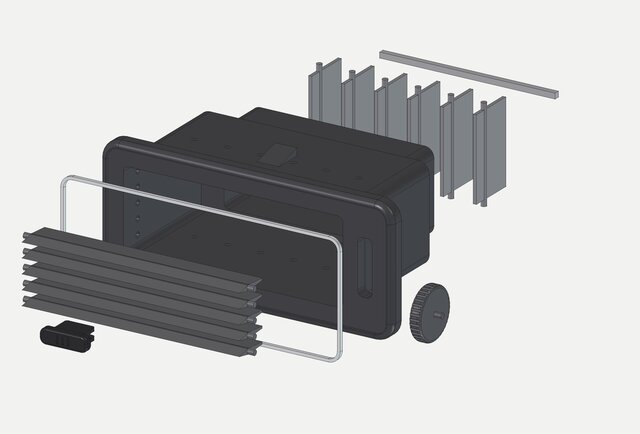

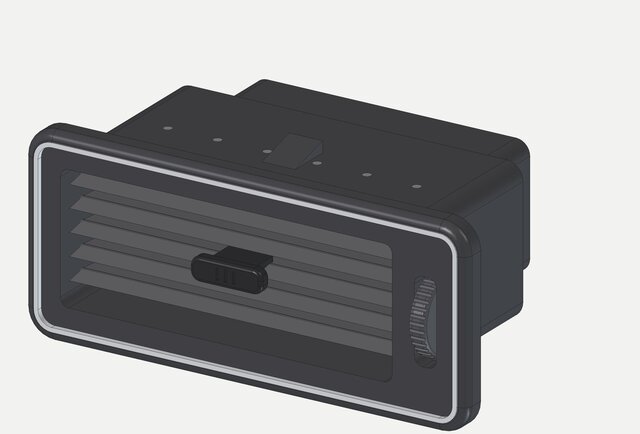

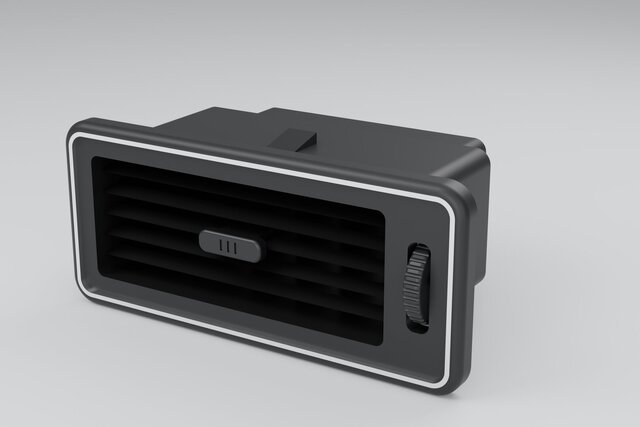

Automotive dashboard air vent with five movable horizontal vanes driven by a slider tab, six rear vertical vanes connected by a link bar, a thumb wheel for adjustment and a housing with bezel, duct neck and two snap clips for installation. Chrome trim ring seated in the bezel. Design features: - Parts designed for plastic injection molding, nominal wall 3.0 mm - Vane pivots dia 3 mm, snap fit into the housing walls - 16 parts, overall 160 x 70 x 98 mm Included: dimensioned 2D assembly drawing with bill of material, rendered views and a STEP model. Dimensions in millimetres. Conceptual portfolio sample.
