High-Reliability Custom Arduino Mega 2560 Sensor Shield

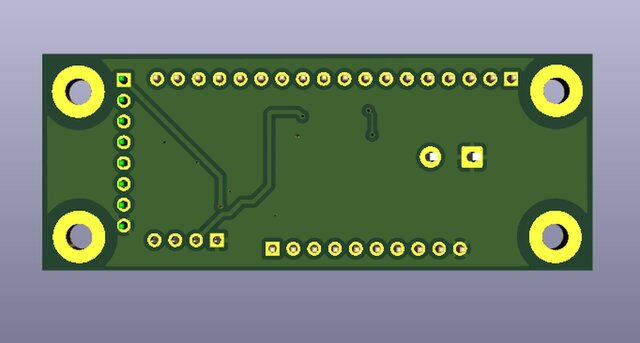

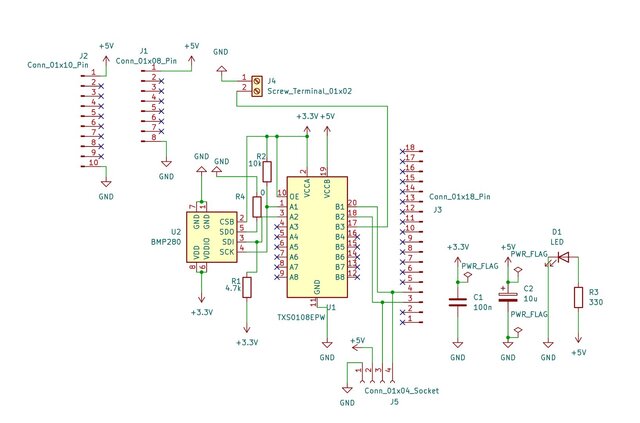

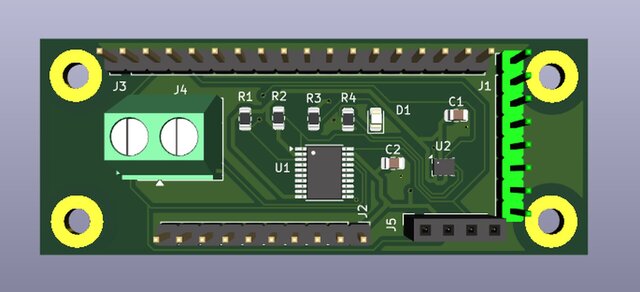

This portfolio showcase highlights a production-ready, 2-layer expansion shield mapped precisely to the complex Arduino Mega 2560 footprint. The hardware integrates an onboard Bosch BMP280 environmental sensor, bi-directional active logic level-shifting arrays for mixed-voltage environments, and industrial-grade screw terminal blocks for rugged field wiring.Engineering Implementation Highlights:EMI Mitigation: Routed an unbroken bottom copper ground plane ($B.Cu$) directly below high-speed data tracks to provide minimal-loop return paths, suppressing parasitic noise.DFM Optimization: Manually adjusted all 0805/0603 passive pad entries to exit perfectly centered and perpendicular. This prevents thermal imbalances and eliminates "tombstoning" defects during the automated industrial SMT reflow phase.Quality Assurance: Passed a comprehensive Design Rules Check (DRC) with 0 errors and 0 unconnected lines. All silkscreen indicators were visually checked via 3D analysis to remain completely unobstructed post-assembly.Manufacturing Deliverables Available: Universal Gerber Packages (RS-274X), NC Drill Files (.DRL), documented Bill of Materials spreadsheet (BOM), photorealistic 3D renders, and editable native source files.
