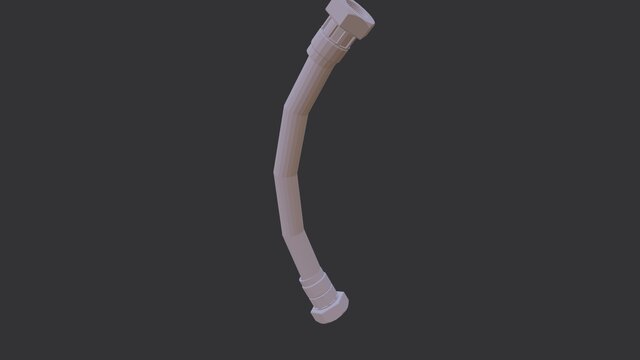

Curved Pipe Assembly with Mechanical Fittings

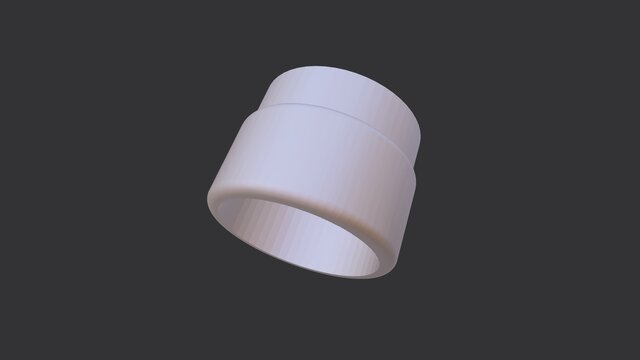

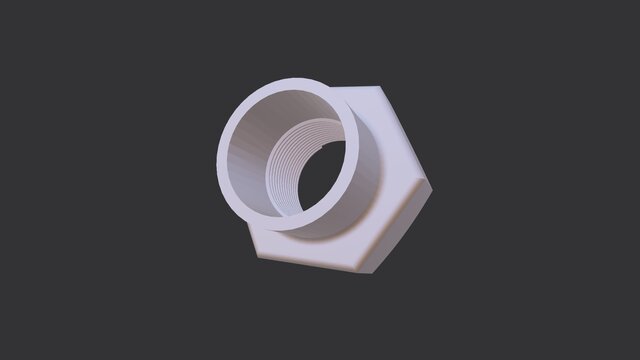

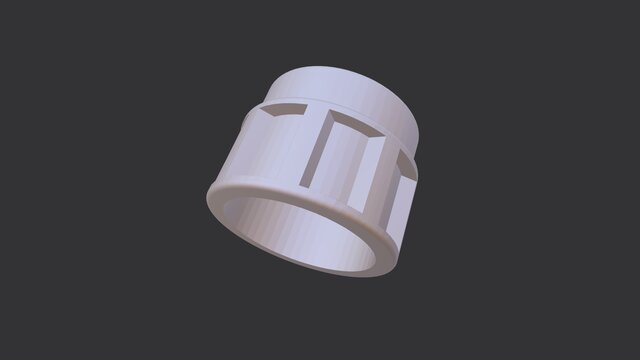

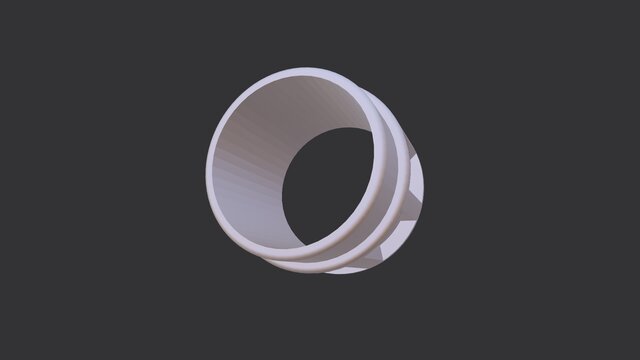

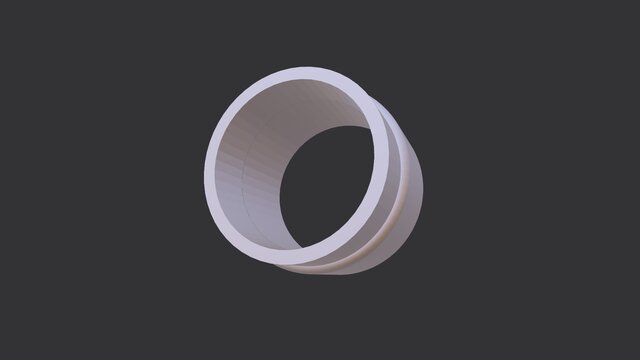

Designed a detailed 3D CAD assembly of a curved pipe/hose component with mechanical end fittings. The project involved creating the curved pipe geometry, developing the connection components, and assembling the individual parts into a complete functional model. The design was developed with attention to accurate geometry, component alignment, and manufacturing requirements. The project included 3D part modeling, assembly design, mechanical detailing, and preparation of an engineering drawing for documentation.
