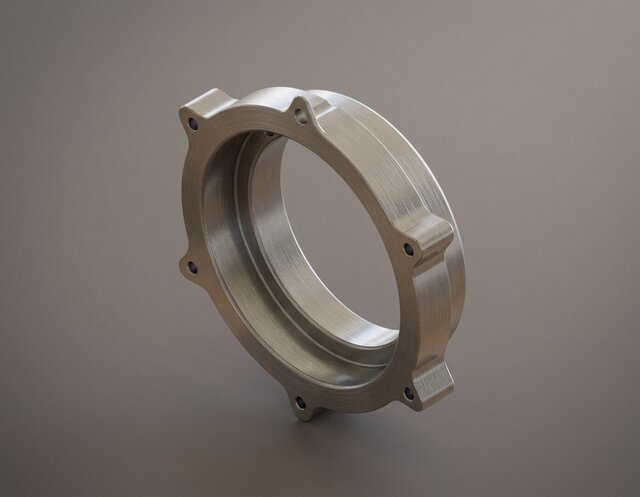

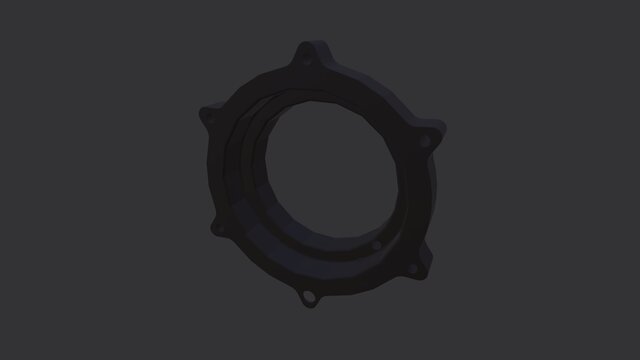

CASE OF STUDY CNC Machined Front Oil Seal Holder – Aluminum 6061-T6

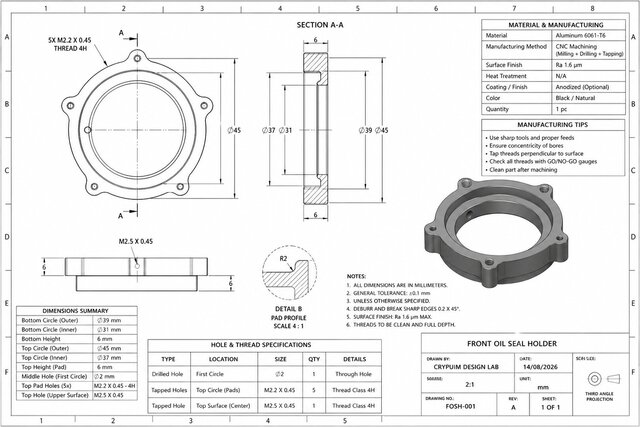

Precision designed front oil seal holder featuring a stepped internal bore, integrated mounting lugs, and threaded mounting holes. Designed for CNC manufacturing from Aluminum 6061-T6, with a compact 12 mm total height and optimized geometry for strength, sealing, and easy machining. Manufacturing: CNC turning + 3-axis milling + drilling/tapping Material: Aluminum 6061-T6 Features: Stepped seal seat, 5 mounting points, M2.2 × 0.45 and M2.5 × 0.45 threads, Ø2 mm hole Application: Mechanical assemblies, oil sealing systems, housings, and custom machinery components.
