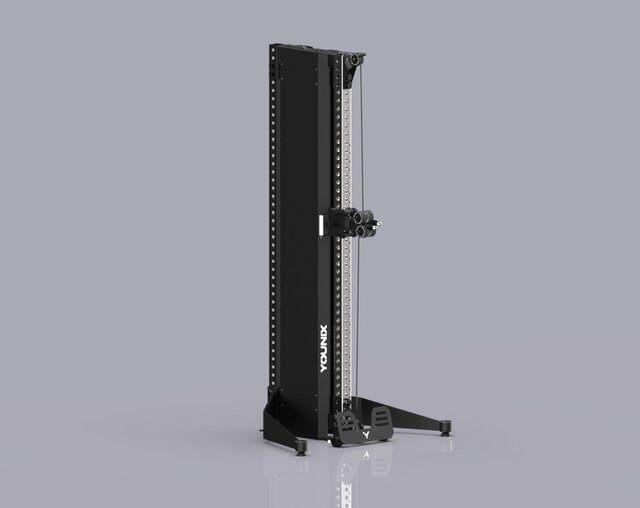

Structural Cable Tower with Weldment Design

This project involved the design and development of a robust structural cable tower assembly intended for commercial fitness equipment. The objective was to create a durable, manufacturable, and aesthetically clean structure capable of supporting high cyclic loads while ensuring smooth cable operation and long-term reliability. The entire assembly was developed in SolidWorks using weldment features and parametric modeling techniques. Special attention was given to structural integrity, material optimization, manufacturability, and ease of assembly. Standard steel profiles were utilized to minimize fabrication costs while maintaining the required strength and stiffness. The design process included: Parametric 3D modeling of the complete cable tower assembly Weldment structure design using standard steel sections Design for Manufacturing (DFM) considerations Structural layout and component integration Manufacturing-ready fabrication drawings Assembly verification and interference checking Bill of Materials (BOM) generation Software Used: SolidWorks AutoCAD Deliverables: Complete 3D assembly model Individual part models Detailed fabrication drawings Weldment cut list Assembly drawings STEP and PDF files This project demonstrates expertise in mechanical engineering, welded structures, product development, and manufacturing documentation for industrial and commercial equipment. Skills Demonstrated: Mechanical Design Weldment Design Structural Engineering SolidWorks Manufacturing Drawings Design for Manufacturing (DFM) Assembly Design BOM Preparation Fabrication Documentation
