Bulk Material Transfer Chute – Fabrication Detailing

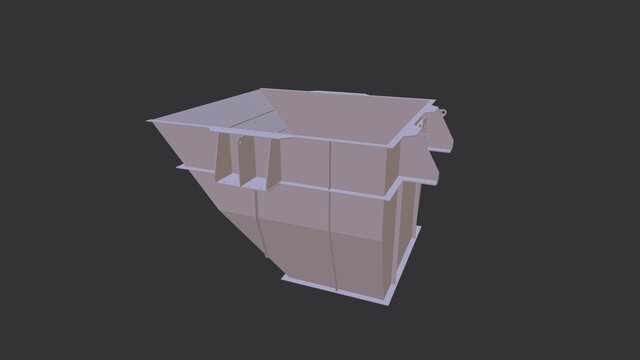

Industrial bulk material transfer chute developed for heavy-duty applications. Scope included detailed 3D modeling, fabrication-ready 2D drawings, assembly details, wear liners, stiffeners, and Bill of Materials (BOM), focused on manufacturing and field installation. Representative industrial project. All sensitive information has been removed.
