Belt Conveyor BCD-2410 with Pneumatic Swing-Arm Diverter and 30 deg Roller Spur

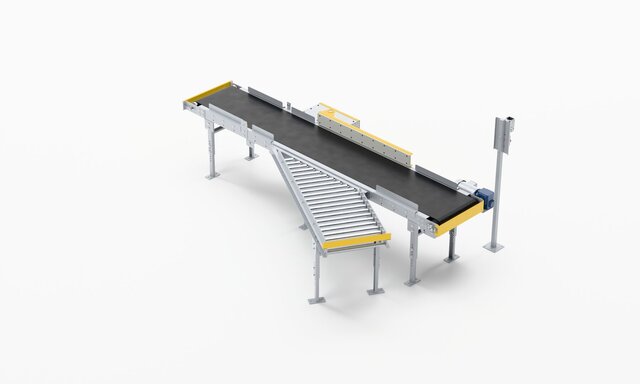

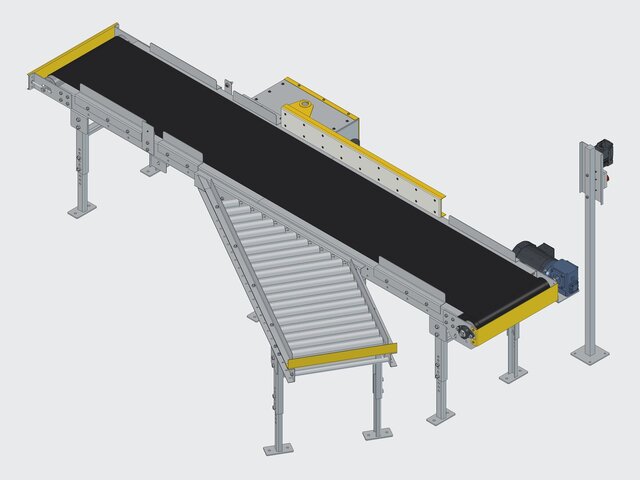

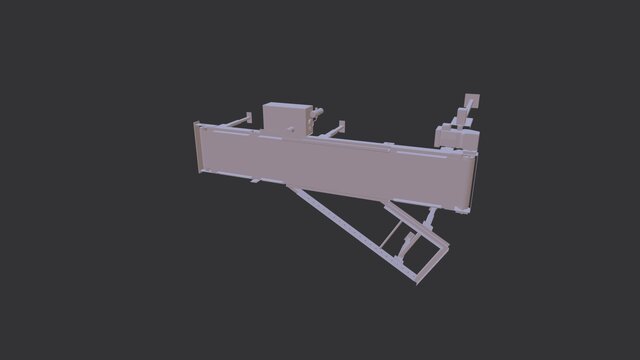

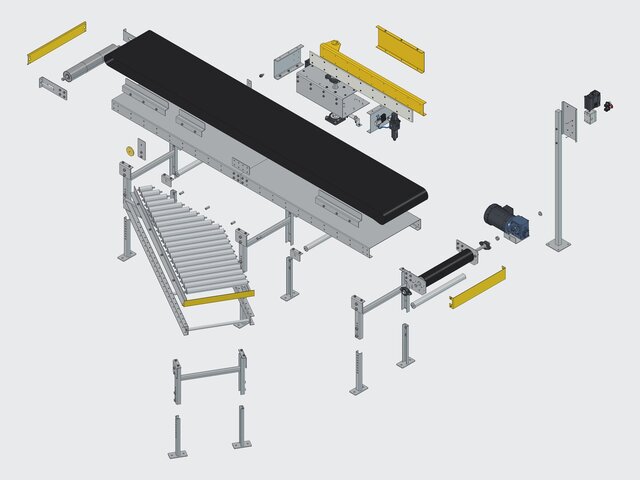

Belt conveyor for cartons up to 23 kg with a pneumatic swing-arm diverter that sends cases onto a 30 degree gravity roller spur. 24 in (610 mm) bed, 20 in (508 mm) belt, top of belt 762 mm. Design features: - Drive end with 1/2 hp shaft mounted gearmotor 40:1 and torque arm, belt speed approx. 15 m/min - Diverter arm driven by a 2-1/2 in bore x 4 in stroke air cylinder, 30 degree swing, proximity sensors at both ends of travel, replaceable wear strip - Gravity roller spur with end stop; floor supports adjustable in 25.4 mm steps - Control post with AC drive, start and emergency stop; filter-regulator air inlet - Guards on all pinch points, powder coated frame, safety yellow guards and diverter arm - Overall 3409 x 2147 x 1372 mm, approx. 300 kg Included: general arrangement drawing, drive end and diverter assembly drawings with bills of material, drive end plate fabrication drawing, rendered views and a STEP model of the assembly. Dimensions in millimetres, third angle projection.
