Bearing Block

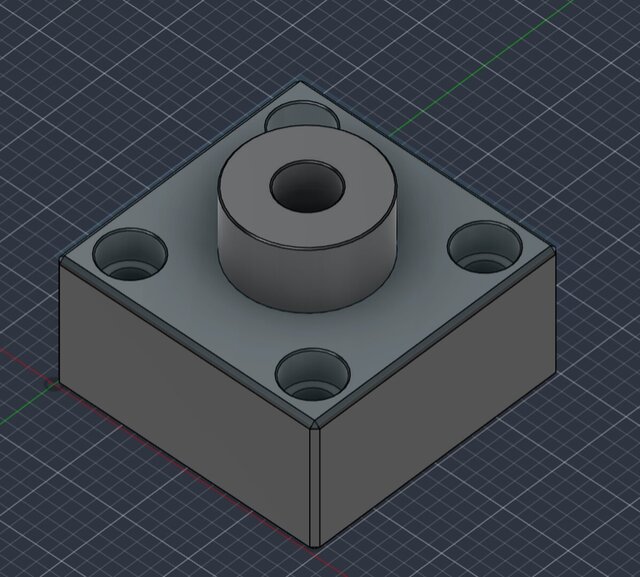

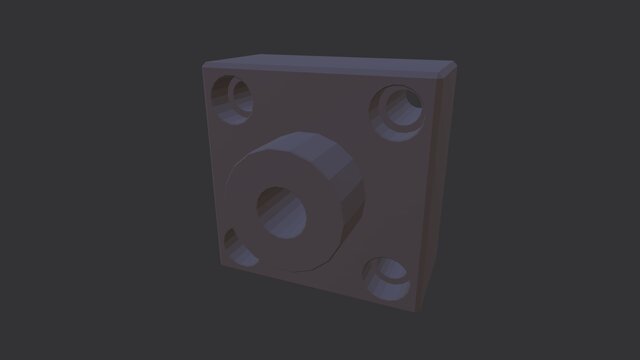

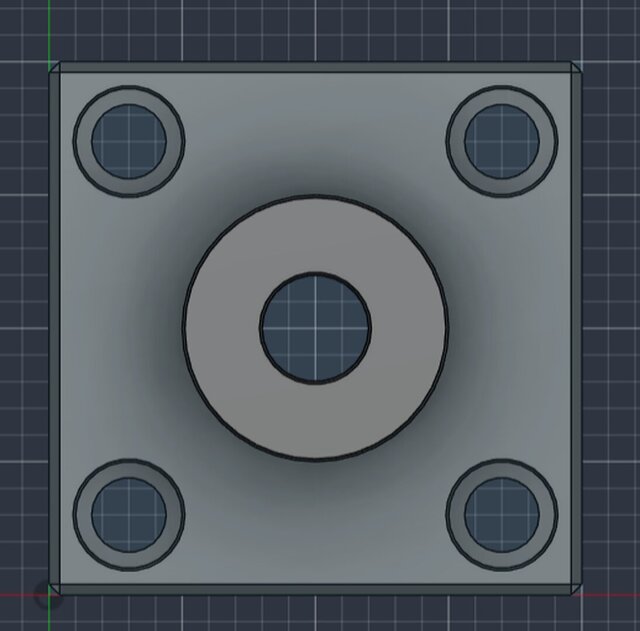

A mechanical component modelling project involving the creation of a bearing block using Autodesk Fusion. The component features a central cylindrical boss, mounting holes and counterbored features, with geometry suitable for conventional machining processes. The project includes a detailed 3D model and a dimensioned engineering drawing showing the component's main features and dimensions. Skills demonstrated: Parametric 3D modelling, mechanical component design, counterbored holes, technical drawings and manufacturing-focused CAD.
