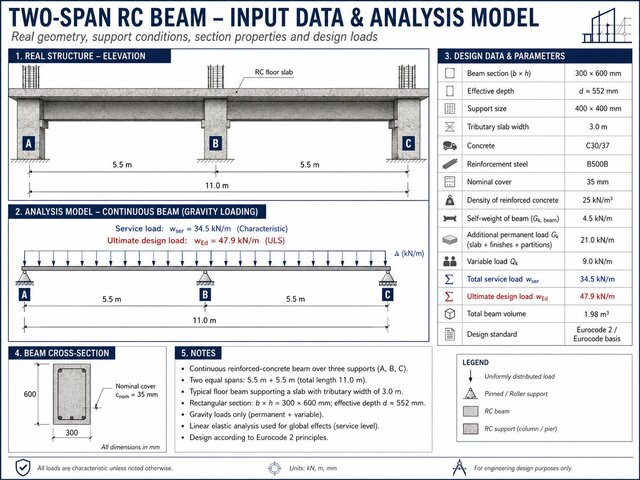

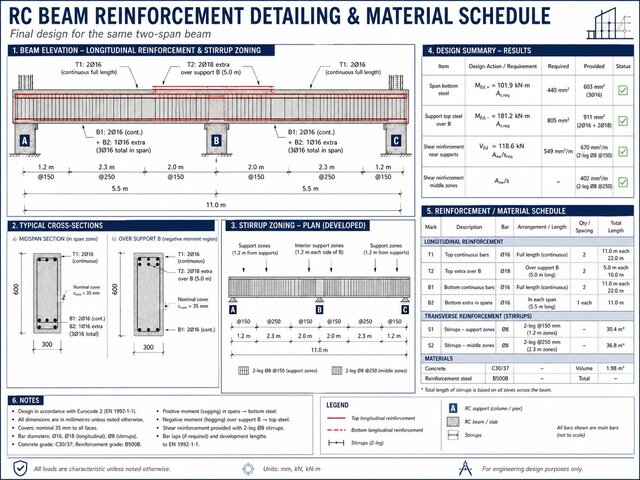

Reinforced concrete monolithic beam design example. This project shows the full workflow for a cast-in-place RC beam: structural analysis model, internal force results, reinforcement design and practical rebar detailing for construction drawings. Scope of work: - Beam analysis under design loads - Bending moment and shear force review - Reinforcement selection and detailing - Main longitudinal bars, stirrups and anchorage zones - Preparation of clear structural detailing drawings for construction use The example demonstrates my approach to structural calculations, reinforced concrete design and CAD detailing for real buildable structures.
