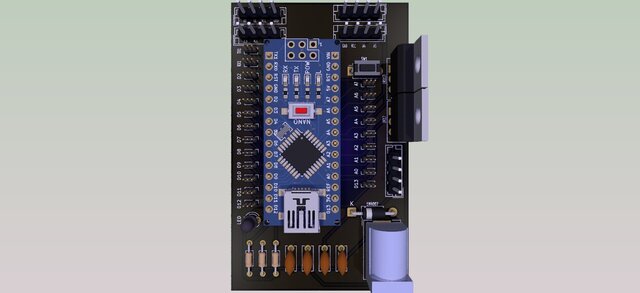

Arduino Nano Breakout Board with KiCad

Completed designing an Arduino Nano Breakout Board with KiCad So you have an Arduino Nano but you want to easily connect sensors, motors or LEDs to it so you don't have wires constantly popping off your breadboard every five minutes? Well this breakout board fixes that by assigning every single pin on the Arduino its own screw terminal you simply plug your wire in and tighten down the screw and you're done Ideal for any project whether your making a temp monitor home automation or a robot
