Architectural Stair Details & Construction Documentation

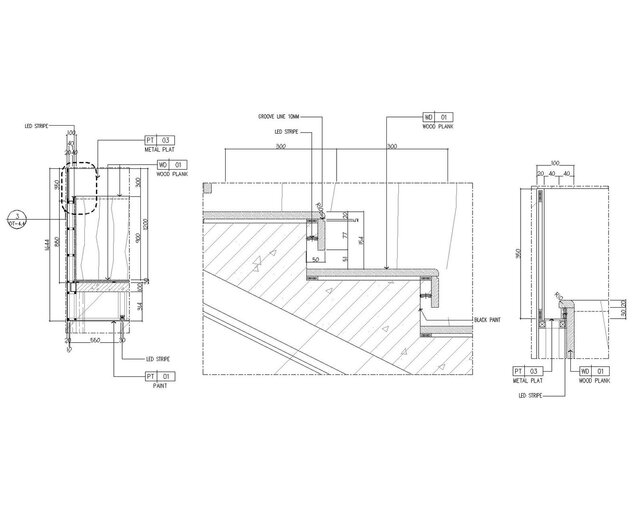

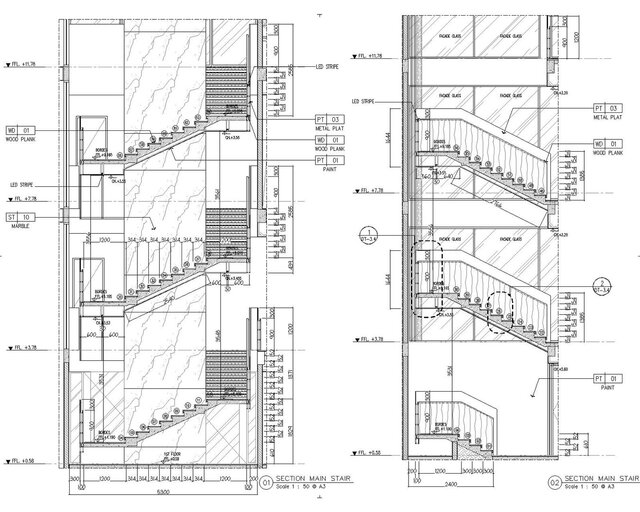

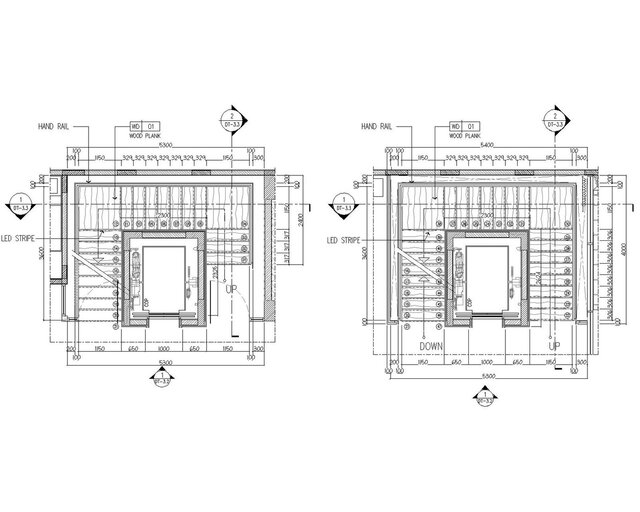

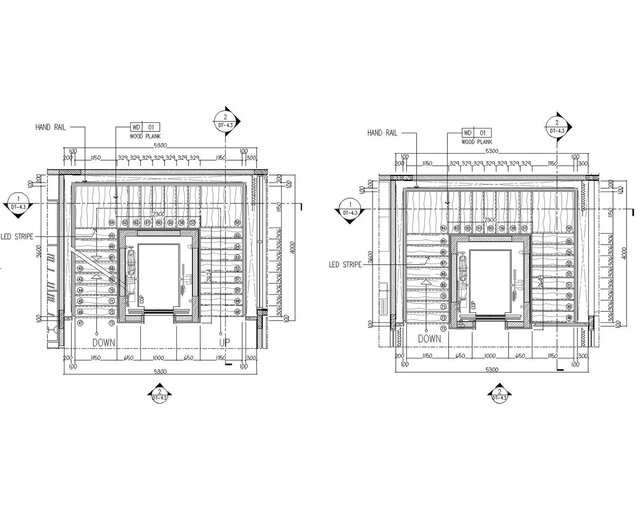

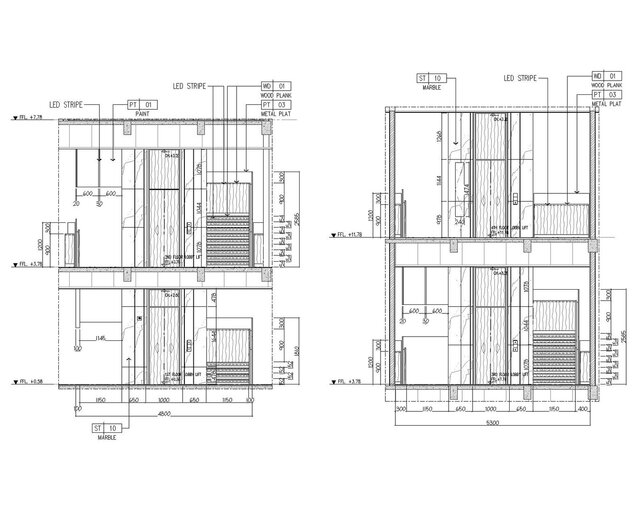

This project presents a detailed architectural stair design prepared using AutoCAD, focusing on constructability, accuracy, and clear technical communication. The drawing illustrates stair geometry, riser and tread dimensions, structural support, and connection details to adjacent floors. It is developed as construction documentation intended for on-site execution and fabrication guidance. The layout is organized to ensure clarity for contractors, engineers, and builders, with fully dimensioned and annotated details.
