Alloy Wheel AWK-1885 - 18x8.5J ET35 5x114.3, 10-Spoke, with Tire and Wheel Hardware

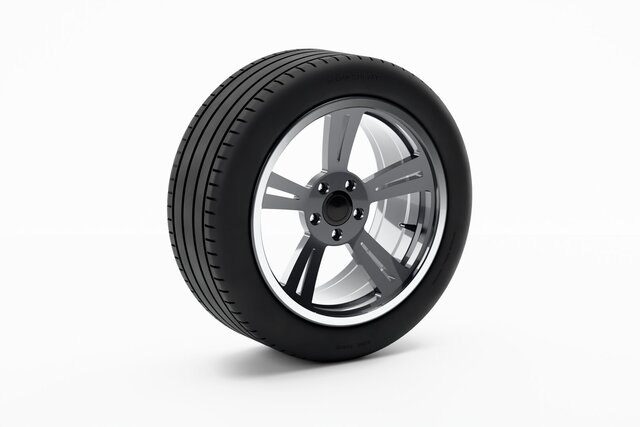

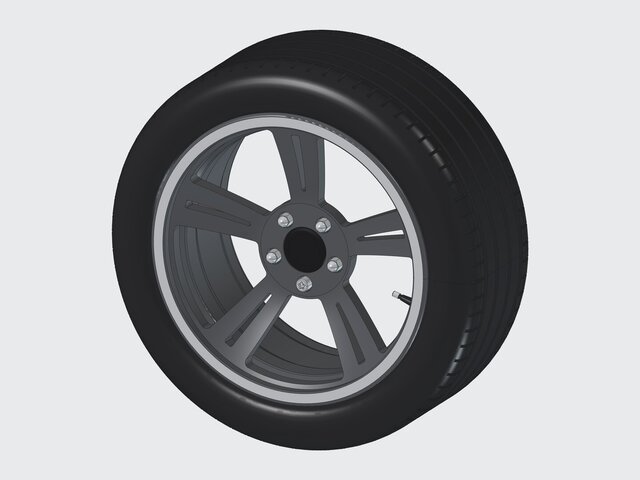

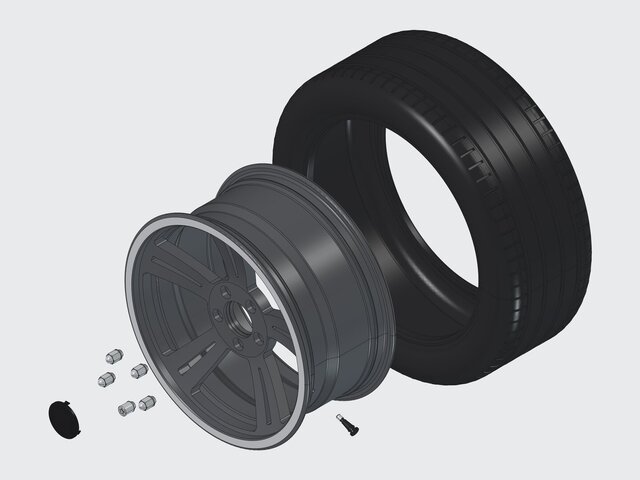

Aftermarket alloy wheel 18x8.5J ET35, 5x114.3 bolt pattern, 73.1 mm center bore, modelled as a complete wheel and tire package with a 245/40R18 tire and the wheel hardware. Design features: - Five split-spoke pairs (10 spokes) with concave face, rounded front edges and weight-relief pockets behind the spokes - Rim contour with J flange, 5 degree bead seats, safety humps on both seats and drop center well - Diamond cut outboard lip face, gunmetal finish on the rest of the wheel - Five lug seats with 60 degree cone and 27 mm nut pockets, valve hole in the drop center - Aluminum A356-T6 casting with flow formed barrel, calculated mass 10.4 kg - Hardware: four M12x1.5 cone seat lug nuts, one locking nut, snap-in center cap, hub-centric ring 73.1 / 64.1, TR413 valve stem and adhesive balance weights Included: package drawing with section and bill of material (8 items), wheel drawing with flange and lug seat details, hardware drawing, rendered views and a STEP model of the assembly. Dimensions in millimetres, third angle projection. Conceptual portfolio sample.
