Adjustable Mounting Plate - CAD Drafting Portfolio Sample

Report

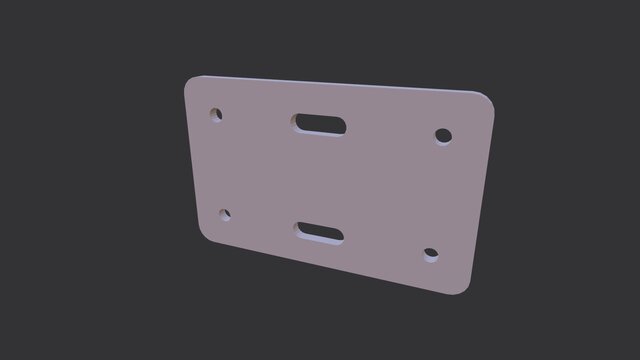

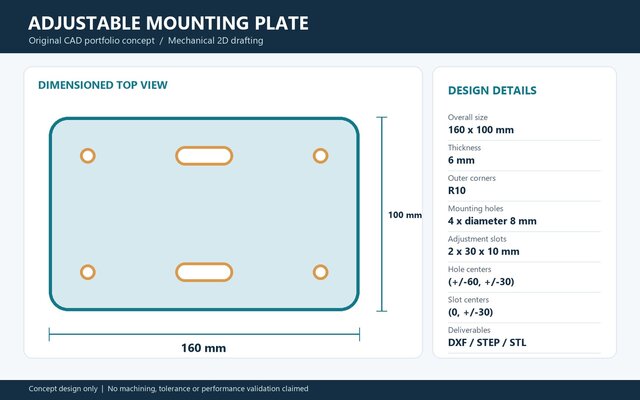

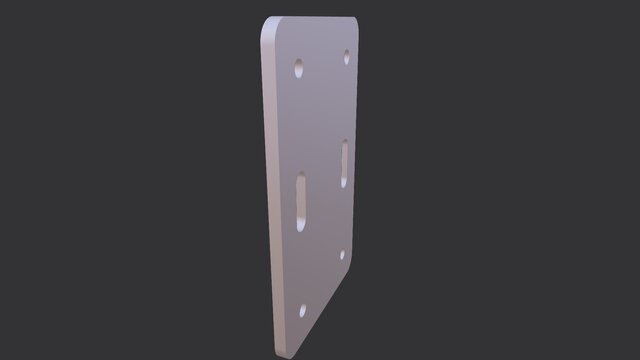

Original AI-assisted illustrative CAD concept for a 160 x 100 x 6 mm mounting plate with R10 rounded corners, four diameter-8 mm through holes, and two 30 x 10 mm adjustment slots. The accompanying dimensional drawing demonstrates 2D mechanical drafting and CAD-to-manufacturing communication. The concept was modeled for a skills portfolio, not commissioned by a customer. CAD exchange files (DXF, STEP, STL) can be supplied for review. Not approved for fabrication; dimensions, material, tolerances and machining must be independently verified.
