AC DryTrap

Report

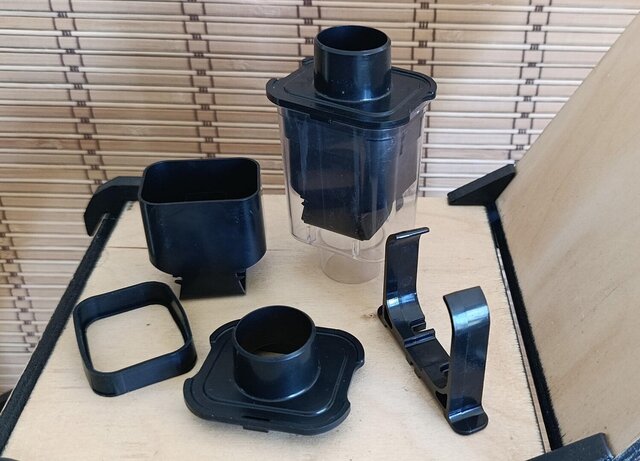

Developed AC DryTrap, an innovative product designed to prevent unpleasant sewer odors from entering indoor spaces through the AC condensate drainage system using a water seal and a mechanical seal. Responsible for 3D CAD modeling, mechanical design, injection molding design and development, DFM, technical documentation, and manufacturing support. Also created product visualizations, animations, and instructional materials, with a focus on reliability and efficient production. https://youtu.be/uxyfHsf8G34
Published
in 3D Modeling Design 3D Animation Services Injection Molding Design
engineering cad manufacturing product-design 3d-modeling prototyping product-development injection-molding dfm cad-3d
Rendering Images
