90-Degree Elbow Pipe with Flanged Connections

mehdi777

Report

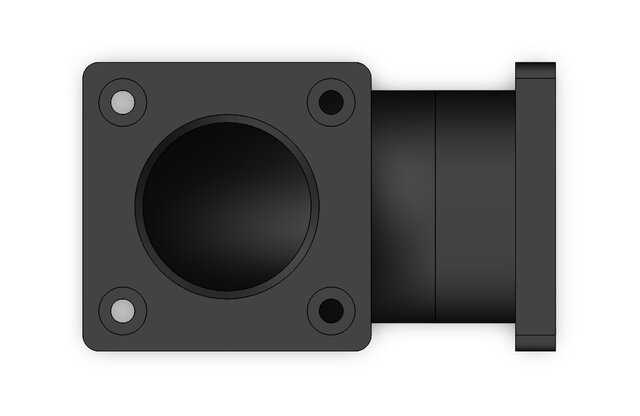

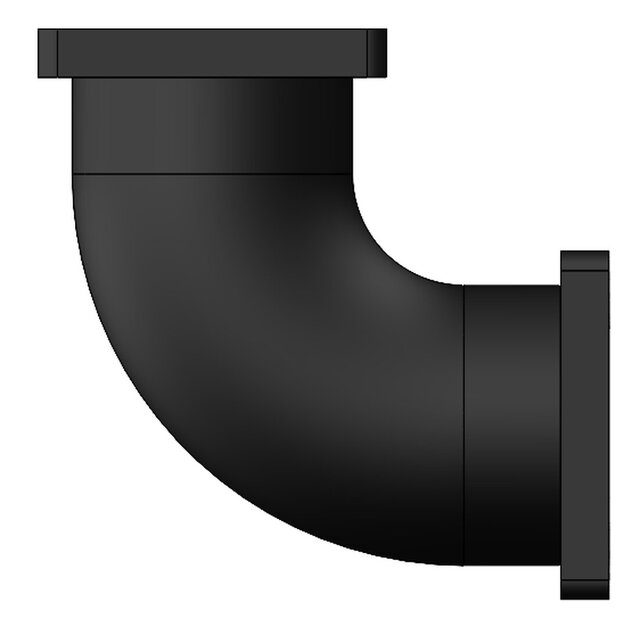

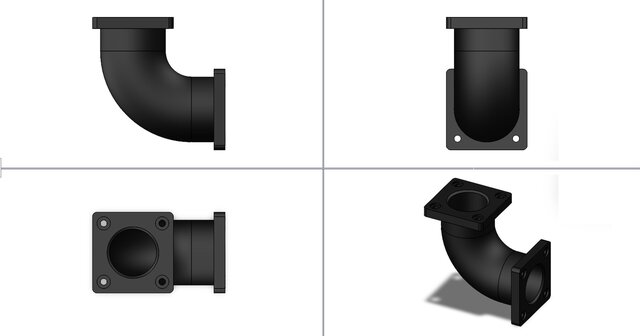

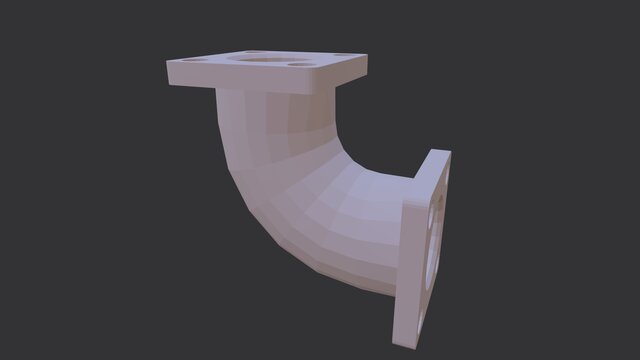

A 3D CAD model of a 90-degree elbow pipe with square flanges and four recessed mounting holes on each flange. Designed in SolidWorks to represent a flanged pipe fitting used in industrial piping systems. The model demonstrates 3D part modeling, curved geometry, flange design, hole placement, and mechanical component detailing.

Published Oct 18, 2026

in 3D Modeling Design 3D Modeling Industrial Design Services

mechanical-engineering 3d-cad part-modeling

Rendering Images STEP/STP 3D Modeling
