3D Modeling & Assembly of an Automotive Transmission

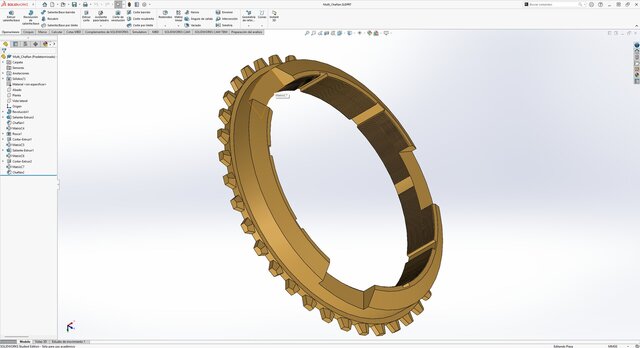

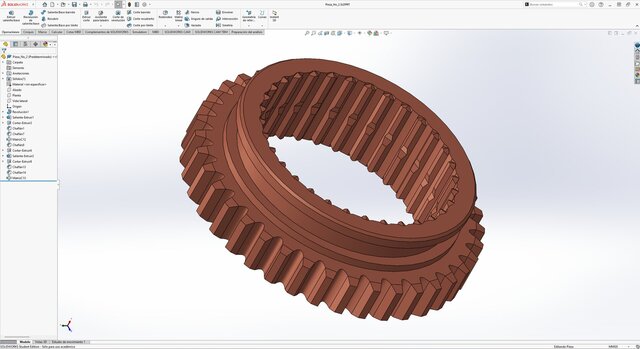

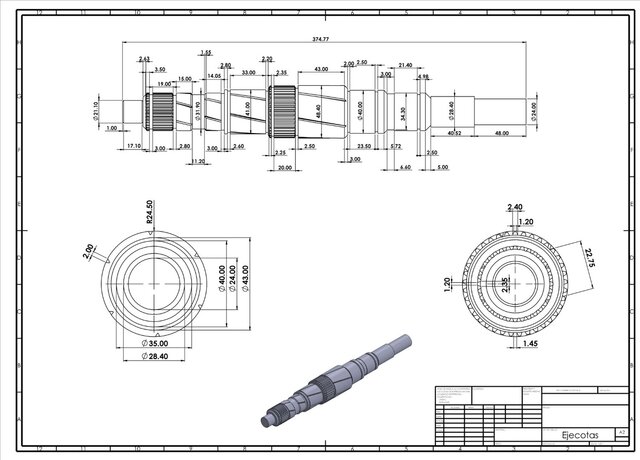

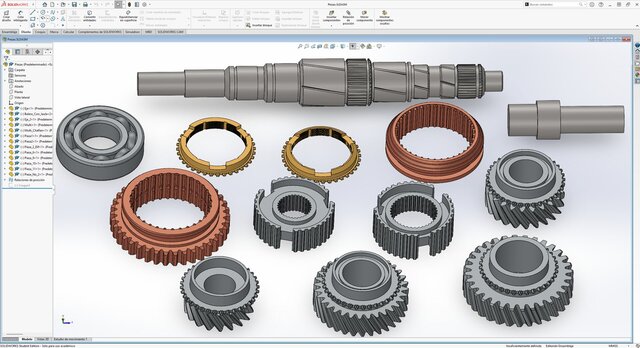

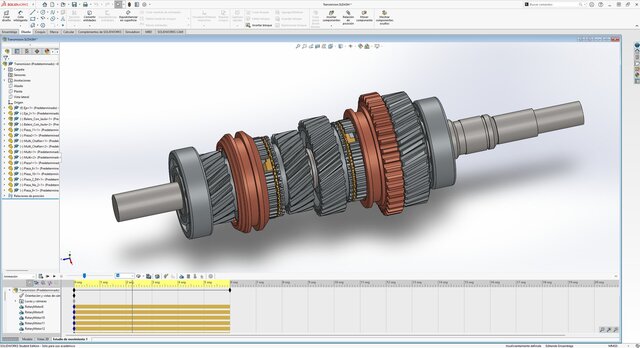

# Project Overview This project involved the reverse engineering and 3D modeling of an automotive transmission section using SolidWorks. The objective was to analyze a physical mechanical assembly, obtain accurate measurements, and recreate its main components as detailed 3D CAD models. ## Process - Measured the physical transmission components using calipers. - Used real dimensions and geometries as references for the CAD models. - Modeled the individual mechanical components in SolidWorks. - Created the complete 3D assembly and defined the relationships between components. - Verified the positioning and interaction of the different mechanical parts. - Used SolidWorks Motion Study to animate and visualize the movement of the mechanism. ## Skills and Tools - SolidWorks - 3D Mechanical Modeling - Reverse Engineering - Mechanical Assemblies - Technical Measurement - Motion Study and Mechanism Animation
