280 Ton/Day Heat Pump Sludge Drying System – National Solid Waste Treatment Project

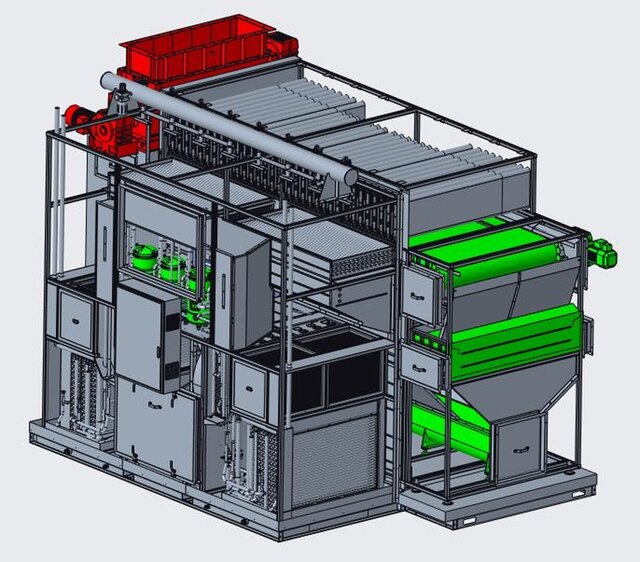

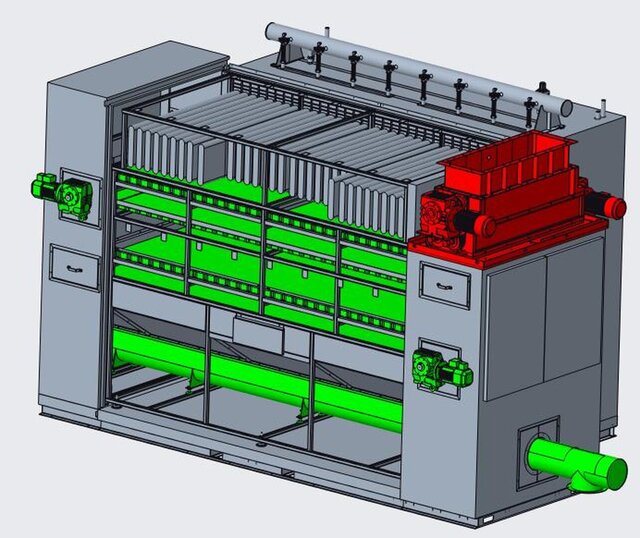

Role: Chief Structural Engineer Responsible for overall system architecture planning, structural design and project delivery. I specialize in designing and delivering highly complex industrial systems, focusing on system integration, reliability and cost control. --- 1. Ultra-Large System Integration & Complexity Challenge This project involved a large-scale system (280 tons/day) integrating five major subsystems: heat pump system, drying system, mechanical transmission system, dust removal system, and sludge conveying system. The system complexity was extremely high, posing significant challenges to both the engineering team and the company’s overall technical capability. Solution: * Developed the complete system structural architecture from scratch based on client planning, overall engineering design and existing plant conditions * Achieved deep integration and coordinated design of all five subsystems (heat pump, drying, mechanical transmission, dust removal and sludge conveying) * Collaborated with performance engineers to optimize heat pump system design, airflow organization and heat exchange efficiency * Worked closely with the electrical engineering team to optimize system matching and control logic, ensuring stable operation * Led the full process including structural design, manufacturing, installation and commissioning, and provided on-site installation guidance * Led prototype validation of structure-related subsystems * Conducted functional testing, performance evaluation and multiple rounds of optimization for structural and mechanical modules * Finalized the engineering solution through continuous validation, correction and iterative improvement, ensuring successful implementation Result: * Achieved full validation through prototype testing and three rounds of optimization * Successfully delivered and commissioned the system * System has been operating stably for over 3 years with high efficiency and no major failures --- 2. Manufacturing & Installation Challenge (Super Large Modular System) The system included over 100,000 components and 44 modules, assembled in 4 groups, each exceeding 25 meters in length. Due to early civil construction, no transportation or installation access was reserved, creating major constraints for equipment delivery and on-site assembly. Solution: * Designed a highly modular architecture to support manufacturing, transportation and installation requirements * Re-engineered module segmentation and assembly strategy to adapt to restricted site conditions * Optimized structural design to ensure fast and reliable assembly in complex on-site environments * Implemented standardized module design to reduce complexity and improve consistency Result: * Significantly improved manufacturing efficiency and reduced production cycle * Enabled efficient transportation and rapid on-site installation * Ensured successful delivery under complex engineering conditions --- 3. Automated Cleaning Solution for Filtration & Heat Exchanger (Industry Pain Point) In the industry, filtration systems typically require weekly manual cleaning. This project involved over 3,000 filter bags, resulting in extremely high labor workload and safety risks due to toxic sludge exposure. Additionally, dust accumulation on heat exchanger fins reduces heat transfer efficiency and overall system performance. Solution: 1. Automated Filter Cleaning System * Designed automatic dust removal and cleaning system * Introduced pulse air cleaning technology to periodically remove dust from filter bags through vibration * Significantly reduced manual maintenance and improved operational safety 2. Heat Exchanger Automatic Cleaning System * Designed dedicated high-pressure spray cleaning system * Regularly removes dust accumulation from heat exchanger fins * Maintains long-term heat transfer efficiency and system performance Result: * Achieved fully automated cleaning operation (filtration and heat exchanger) * Significantly improved drying efficiency and overall system performance * Greatly reduced labor cost and maintenance workload * Became a key technical factor in winning and successfully delivering the project --- 4. Cost Control & Engineering Efficiency Optimization Large-scale industrial projects typically face high cost pressure and long delivery cycles. Solution: * Implemented high-level standardization and modular design strategy * Optimized structural design and manufacturing processes to improve cost efficiency * Achieved optimal balance between performance, reliability and cost Result: * Reduced project cost by over $100,000 * Delivered ahead of the original schedule * Significantly improved overall project economic performance and competitiveness --- Value I Deliver: I help companies design and deliver complex industrial systems with: * High reliability * Strong manufacturability * Controlled cost Ideal for: * Industrial drying systems * Large-scale HVAC systems * Multi-system integrated engineering projects
