2-Stage Spur Gear Reducer – Full Assembly Drawing

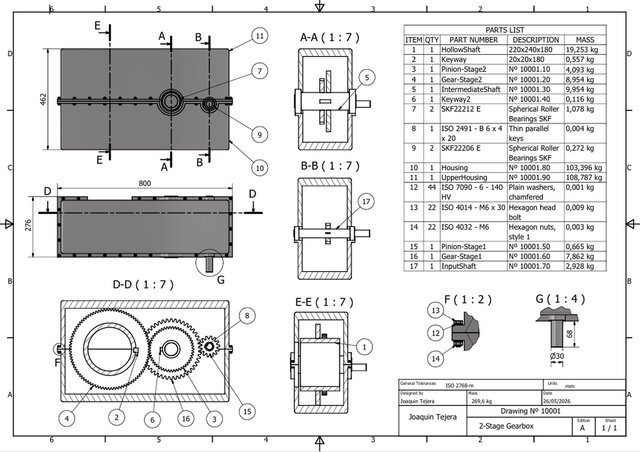

Assembly drawing of a two-stage spur gear reducer designed in Autodesk Inventor 2026. The drawing includes six views (two shaded general views, four cross-sections and two details), a complete Bill of Materials with 17 components including SKF bearings, parallel keys and standard fasteners per ISO, individual mass per component and total assembly mass (269.6 kg). Title block includes drawing number, general tolerances per ISO 2768-m, units and revision. Delivered in PDF format.
