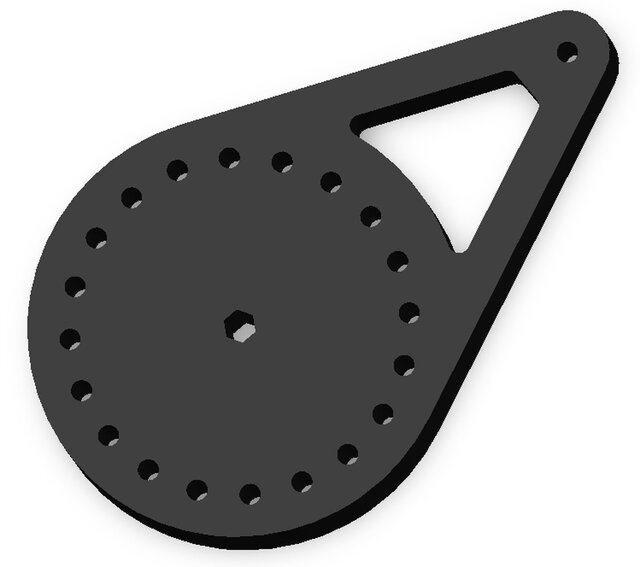

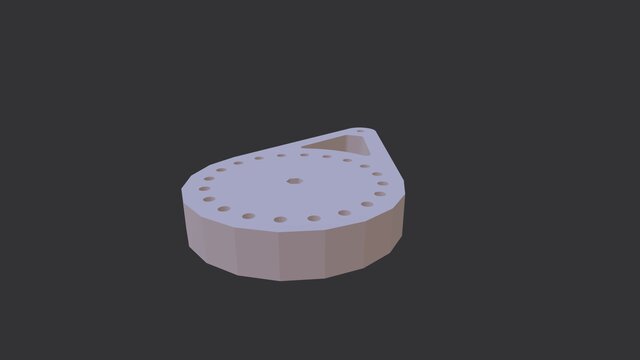

mounting plate with multiple distributed holes, a central mounting feature, and an integrated support arm with a triangular cutout to reduce material usage. Designed in SOLIDWORKS for mechanical design and prototyping.
Published
in 3D Modeling Design 3D Solid Modeling
mechanical-design mounting-plate support-brack
Rendering Images STEP/STP 3D Modeling
