Yoke Pump Mount-Mechanical CAD design

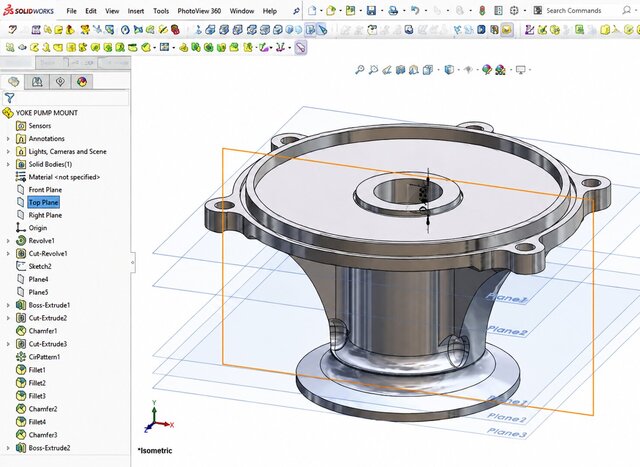

Designed a 3D CAD model of a Yoke Pump Mount in SOLIDWORKS, focusing on accurate mechanical geometry, functional mounting features, and a clean, manufacturable design. The model incorporates a circular mounting flange, central bore, cylindrical housing, mounting lugs, support transitions, and precision-machined features. Parametric modeling techniques were used to develop the geometry through features such as revolves, extrusions, cuts, fillets, chamfers, and patterned holes KEY DESIGN FEATURES Parametric 3D mechanical modeling Circular mounting flange with bolt-hole pattern Central cylindrical bore and housing Structural mounting lugs and support geometry Revolved and extruded features Fillets and chamfers for functional edge treatment Patterned mounting holes Feature-based design for efficient modifications Software Used SOLIDWORKS Deliverables A detailed, editable SOLIDWORKS 3D CAD model suitable for mechanical design development, visualization, and further engineering documentation.
