Working Drawings

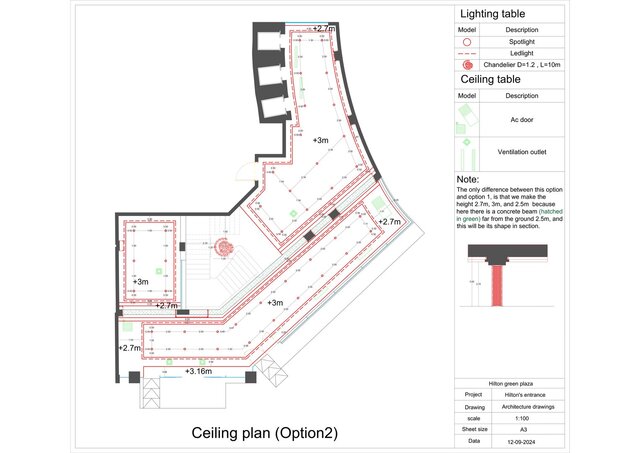

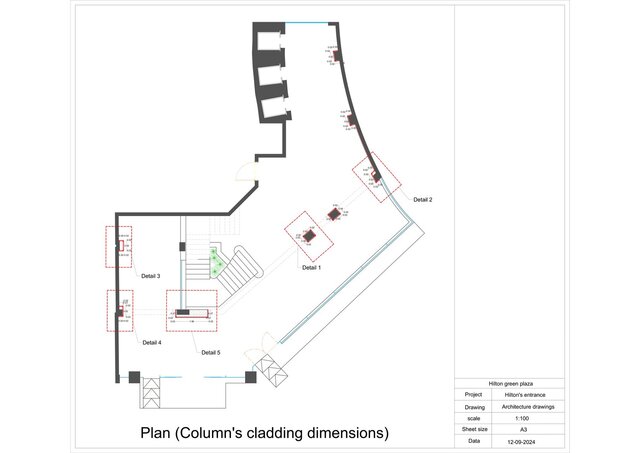

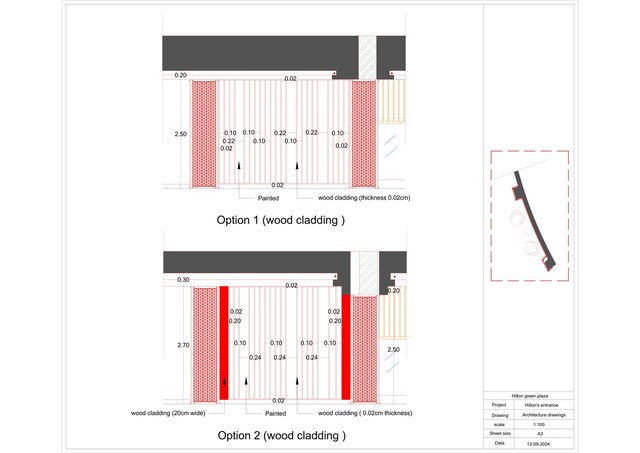

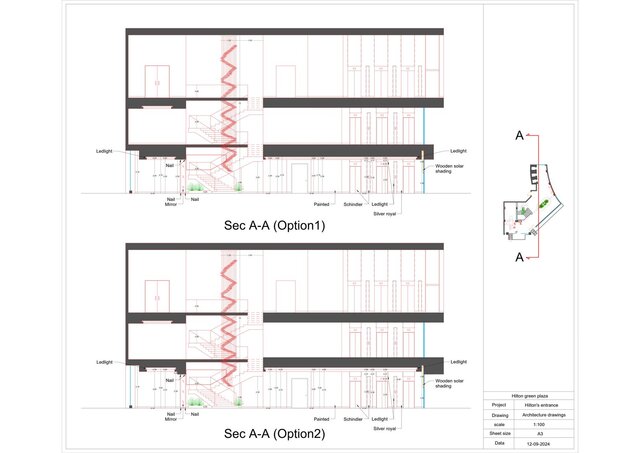

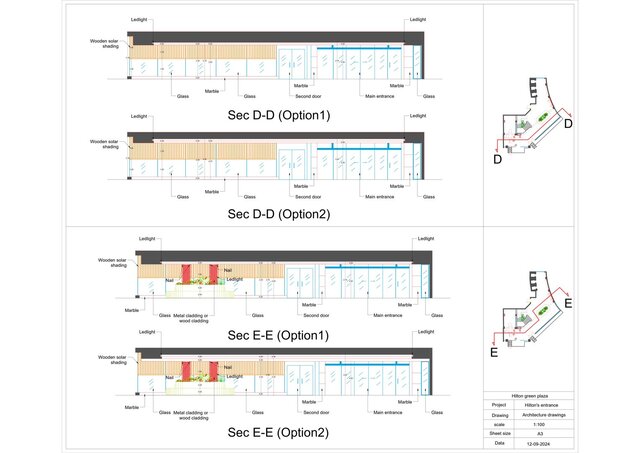

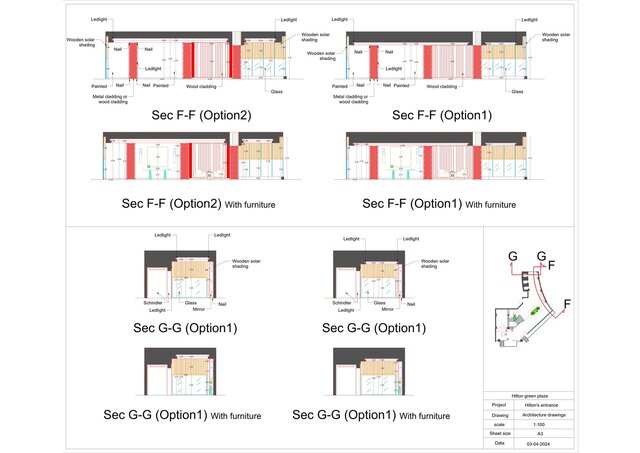

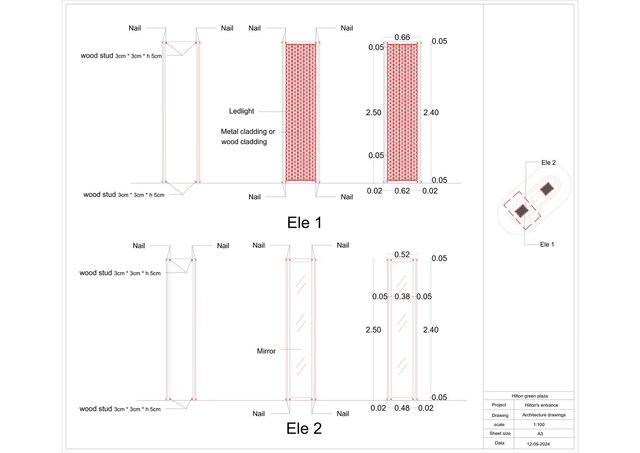

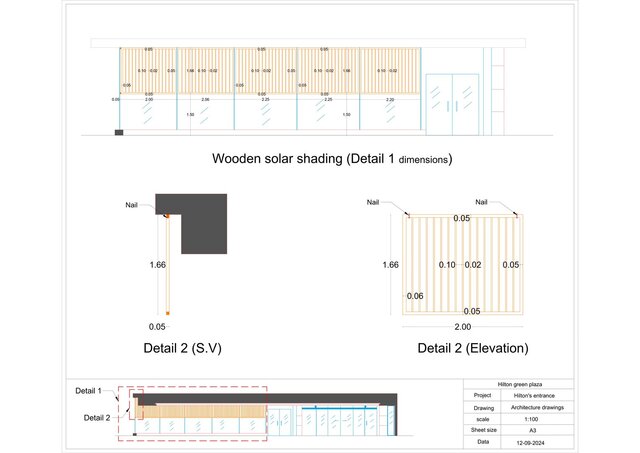

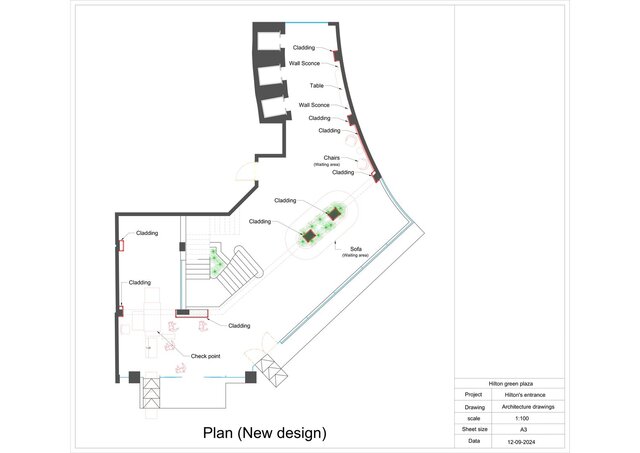

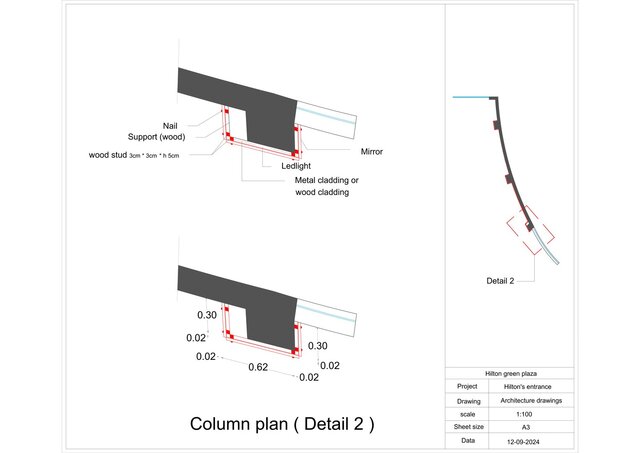

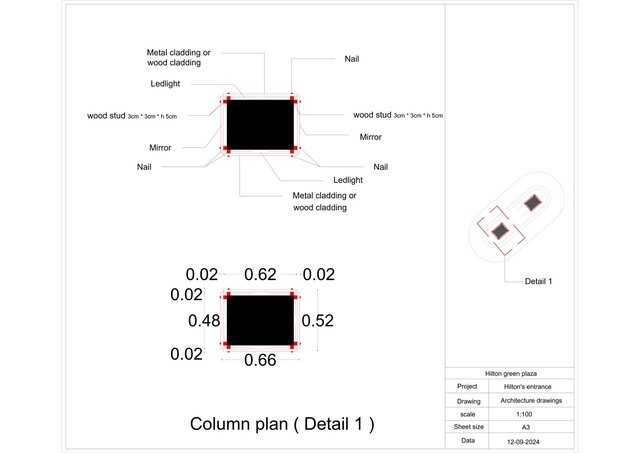

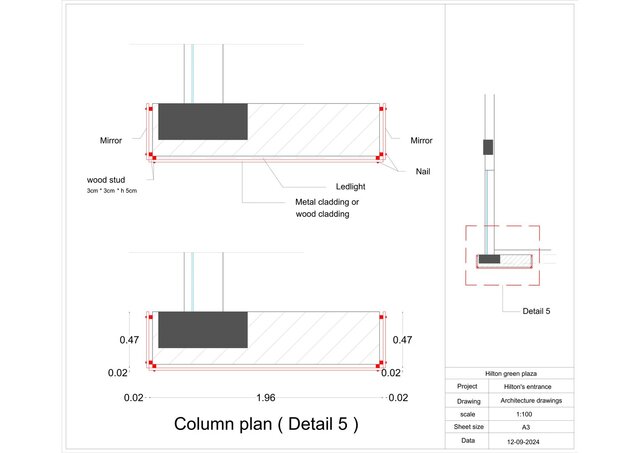

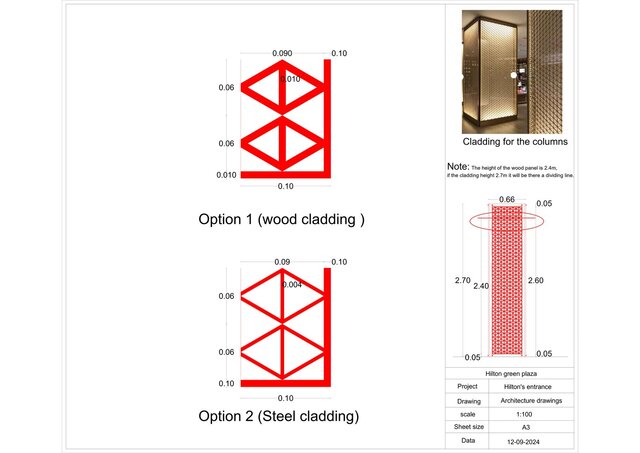

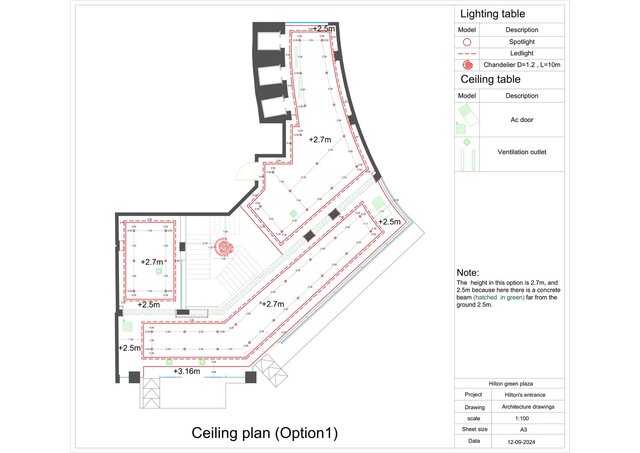

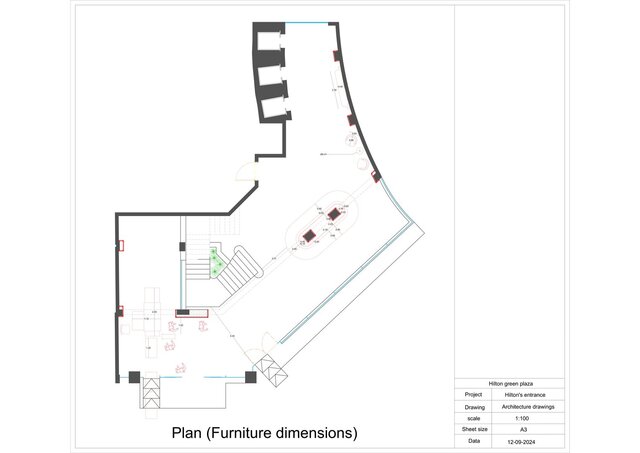

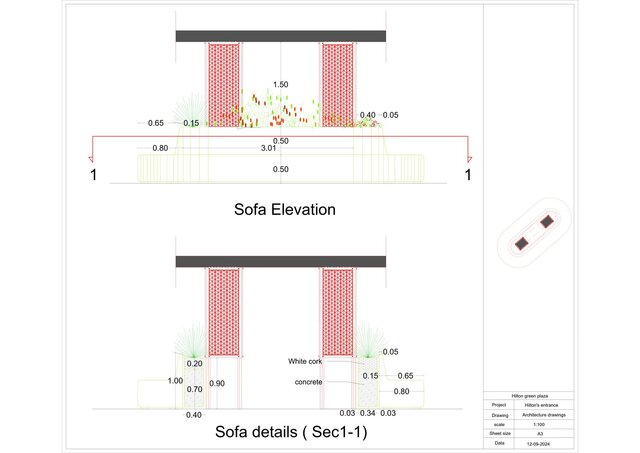

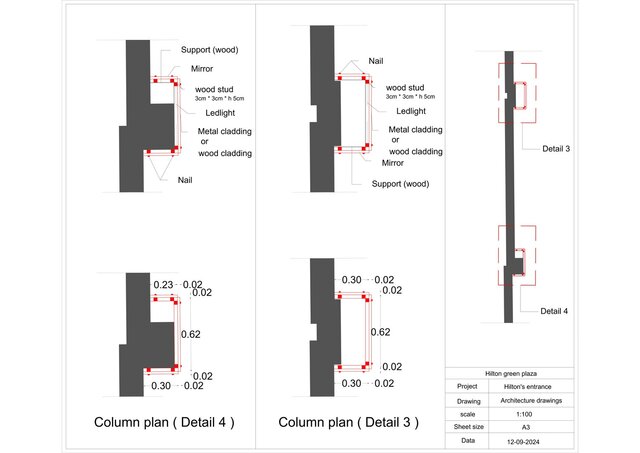

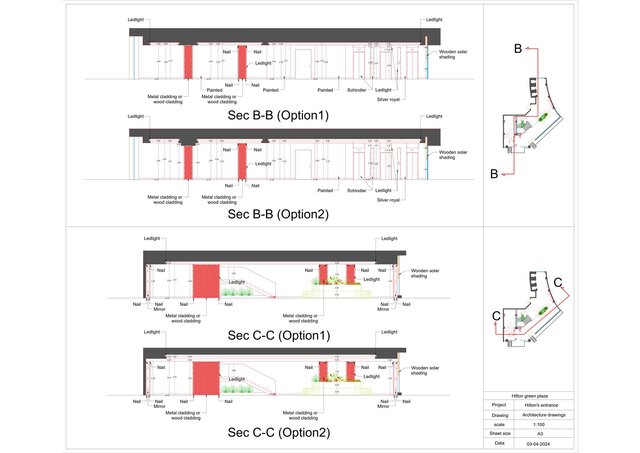

Description of Working Drawings: Working drawings are a set of detailed and accurate plans used during the construction phase to ensure the design is realized on-site in accordance with the original vision. These drawings include all the necessary engineering and technical information for engineers and contractors, including: Floor plans showing dimensions, elevations, and distances with precision. Elevations showing the final appearance of the elements from the outside. Sections showing details of depth, layers, and element intersections. Detail drawings of elements such as pathways, surfaces, finishes, and planting or irrigation systems. Material schedules showing the types of plants, materials, and stones used. Site plans showing the distribution of elements, pathways, plants, lighting, and surfaces. These drawings aim to: Ensure accurate and clear execution without deviation from the design. Facilitate communication between the designer, contractor, and construction team. Minimize errors during the construction phase. Clarify all the technical details required to ensure high quality in the final product.
