Weld Structure for Process Equipment

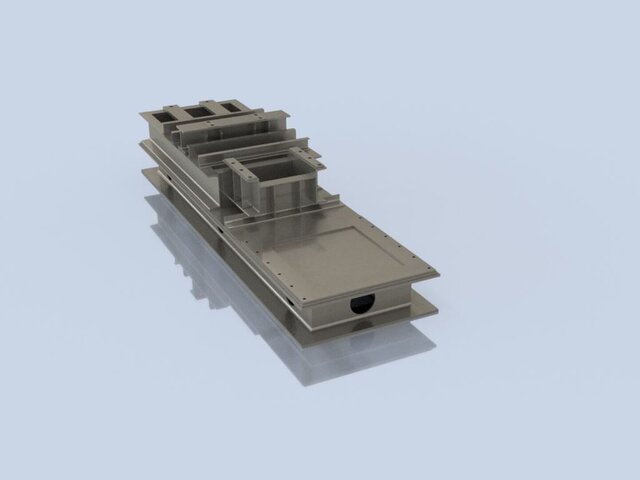

Heavy-Duty Machine Base – Custom Mechanical Design This project shows a custom-designed steel machine base engineered for high stiffness and precision. The structure is fully modeled in Autodesk Inventor and features: Welded and machined steel construction optimized for rigidity Reinforcement ribs and load-bearing surfaces for improved stability Integrated openings for cable routing, shafts, or pneumatic/hydraulic lines Precision mounting platforms for linear guides and mechanical assemblies Optimized geometry to reduce weight while maintaining structural strength I delivered complete 3D modeling, manufacturing drawings, weldment documentation, and assembly support. Suitable for CNC machinery, automation equipment, and custom industrial systems.
