Water Tank Fabrication Design

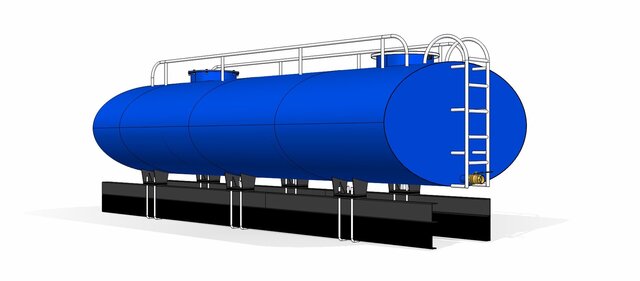

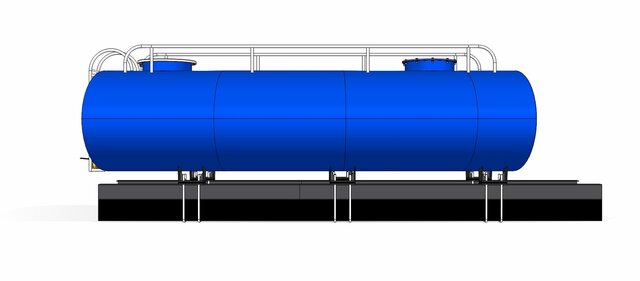

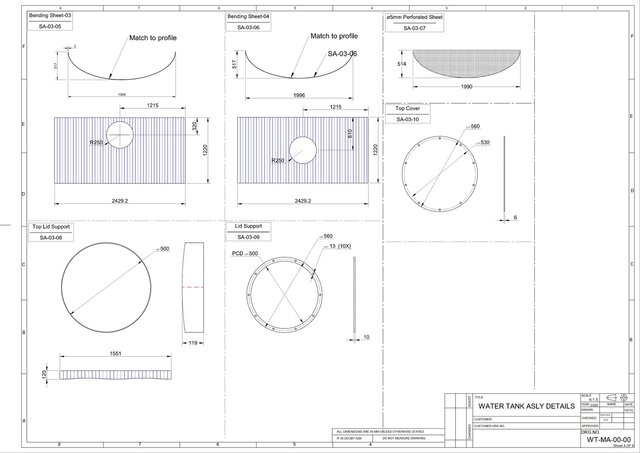

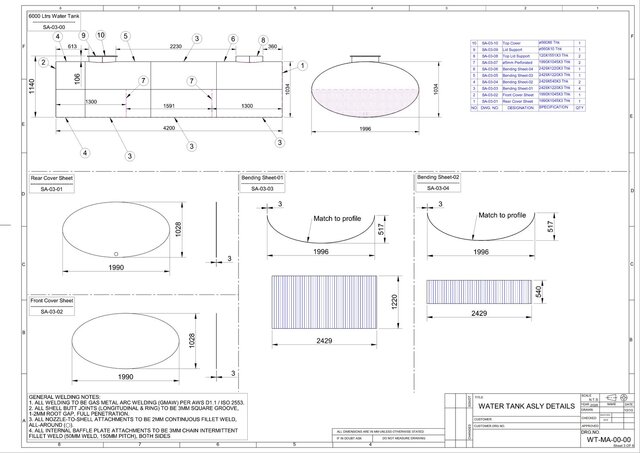

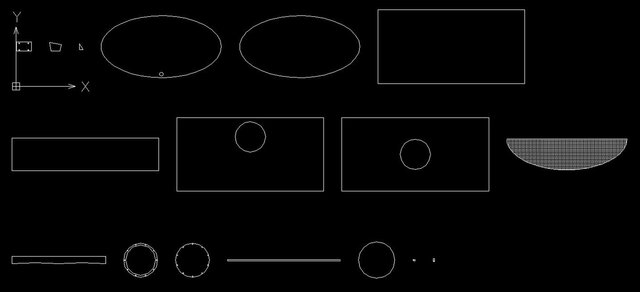

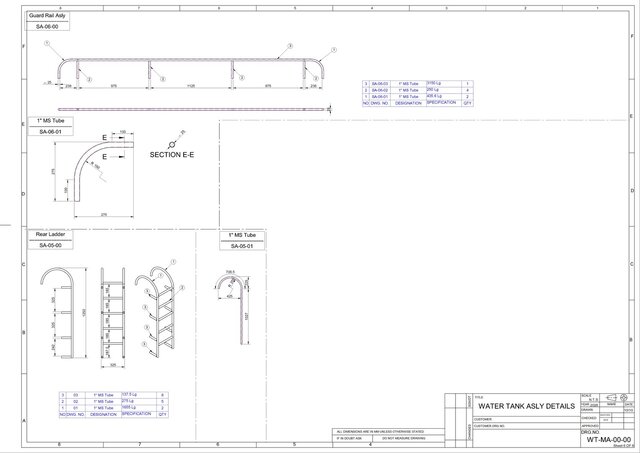

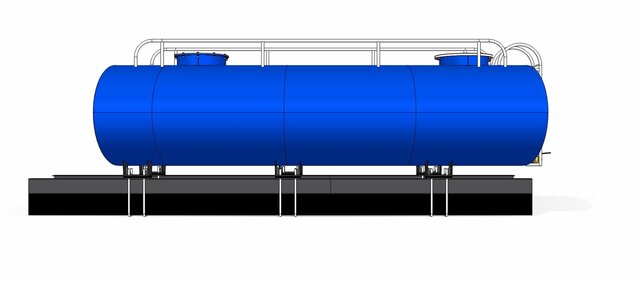

# Water Tank Fabrication Design & Engineering ## Project Overview The client required a fabrication-ready water tank design with specific capacity requirements and material constraints. The objective was to develop a highly manufacturable structure along with a detailed engineering documentation package ready for immediate production and workshop assembly. ## Challenge The design had to accommodate demanding fabrication requirements while considering available sheet metal sizes and workshop manufacturing constraints. Prioritizing material utilization to reduce scrap, ensuring clear welding torch accessibility for the assembly team, and maintaining overall assembly feasibility were critical challenges managed during this design stage. ## Solution A robust, fabrication-oriented tank structure was developed by optimizing individual plate layouts and structural frame arrangements to suit exact manufacturing requirements. The final design was systematically refined to ensure practical workshop fabrication, highly efficient raw material usage, fast laser-cutting setups, and hassle-free assembly. ## Services Provided - 3D CAD Modeling Design - Fabrication Modeling & Drafting Services - Design for Manufacturing (DFM) - Plate Layout Drawings & DXF File Conversion - Engineering Documentation & BOM Development ## Project Result Successfully developed a comprehensive, fabrication-ready water tank design. Delivered a complete engineering documentation package, including exact fabrication drawings, laser-cutting files, and a bill of materials suitable for streamlined manufacturing and assembly.
