Water-Proof-Camera-Encloser

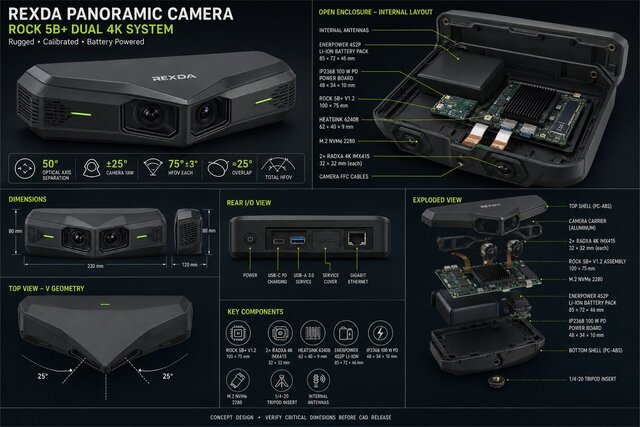

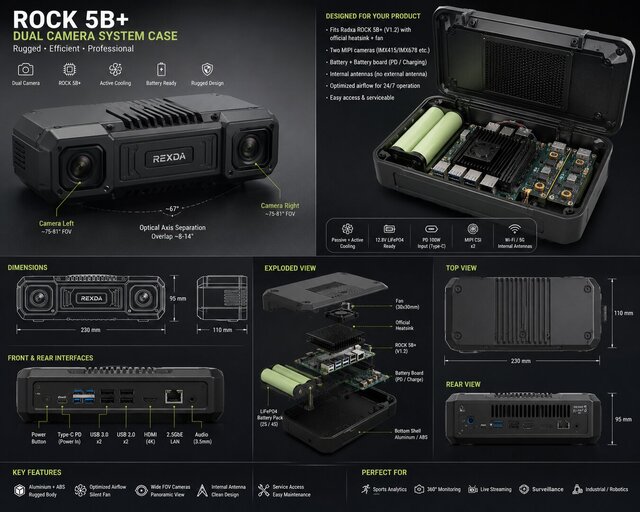

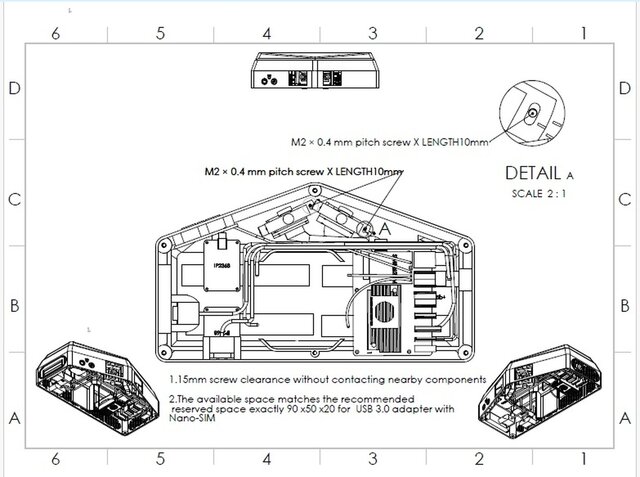

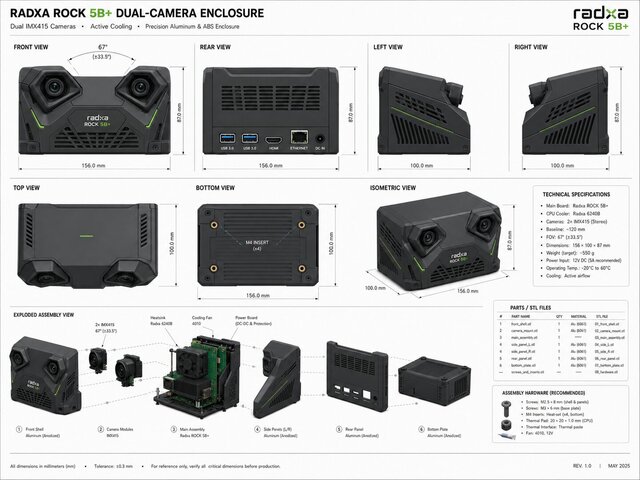

Engineering Meets Innovation: Designing Weather-Resistant Enclosures for Smart Camera Systems I’m excited to share insights into one of our ongoing mechanical design and product development projects involving a specialized enclosure for an advanced outdoor football recording system. ⚽📷 The project focuses on developing a compact, robust, and functional enclosure that integrates high-performance computing hardware, camera modules, and communication electronics while maintaining reliable operation in outdoor environments. 🔧 Key Engineering Challenges & Features: ✅ Custom 3D CAD enclosure design for outdoor applications with an IP65 weather-resistance target. ✅ Integration of NVIDIA Jetson Orin NX 16GB computing hardware, NVMe storage, and a 5G communication modem. ✅ Precision positioning of dual camera modules with a fixed 62° angle between their optical axes. ✅ Optimized internal component trays, camera holders, and complete cable routing. ✅ Sealed connector panels, external SIM card access, and suitable gasket and cable-sealing provisions. ✅ Thermal management and ventilation considerations for reliable electronic operation. ✅ Retention of reusable design elements, including the battery holder, buttons, and reinforced tripod mounting interface. ✅ Complete engineering deliverables, including native CAD files, STEP assemblies, STL models, exploded views, assembly drawings, BOM, and assembly instructions. 💡 Our Engineering Approach We believe successful product development is not just about creating an attractive enclosure. It requires careful consideration of mechanical fit, component clearances, thermal performance, environmental protection, serviceability, and manufacturability. By reusing proven design elements wherever practical, we aim to optimize development time and cost without compromising functionality or engineering quality. At our team, we combine mechanical CAD design, electronics integration, and practical product engineering to transform complex concepts into prototype-ready solutions. 🤝 Looking for support with custom enclosure design, electronics housing, IoT product development, mechanical CAD modeling, or rapid prototyping? Let’s connect! #MechanicalDesign #CADDesign #ProductDevelopment #EnclosureDesign #SolidWorks #3DModeling #IoT #ElectronicsDesign #RapidPrototyping #EngineeringInnovation
