Wall-Mounted Pull-Up Bar — 3D Product Animation & Assembly Visualization

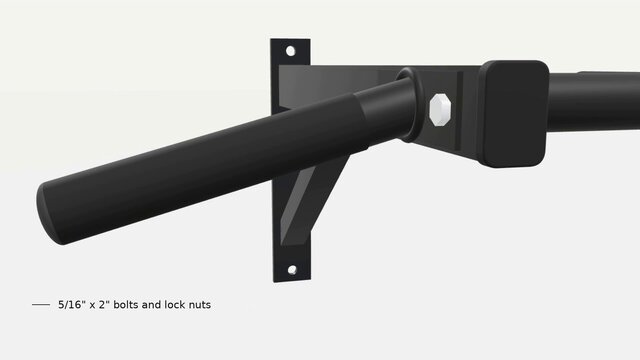

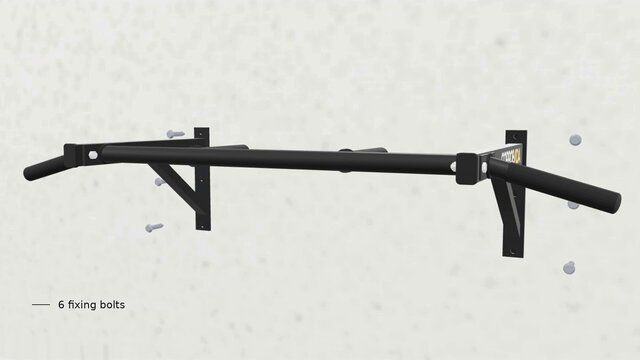

An internal product visualization project for Corpo e Vida Fitness. A wall-mounted pull-up bar sold flat-packed, with no CAD file available — the product was rebuilt from the physical unit itself: photography across multiple views, hand measurements, and assembly references. Seven components were modelled individually, from the central bar and the side brackets down to the wall anchors, the 5/16" bolts and the nylon-insert lock nuts. Each part is named and separable in the assembly hierarchy, which made two deliverables possible from a single model set: an exploded view showing every component supplied, and an assembly sequence covering wall marking, anchoring and fixing. Delivered as a 32-second technical animation at 1920×1080.
