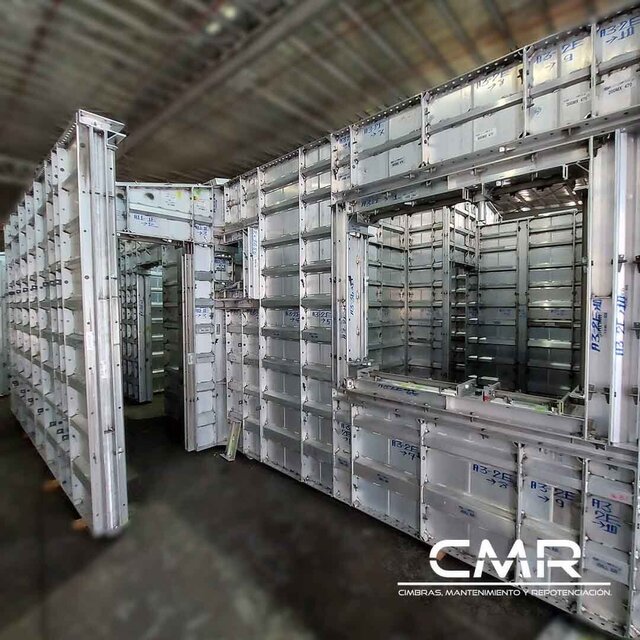

Wall Formwork Systems

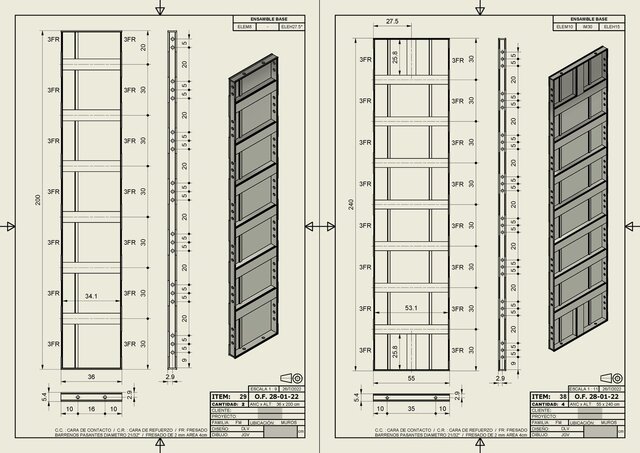

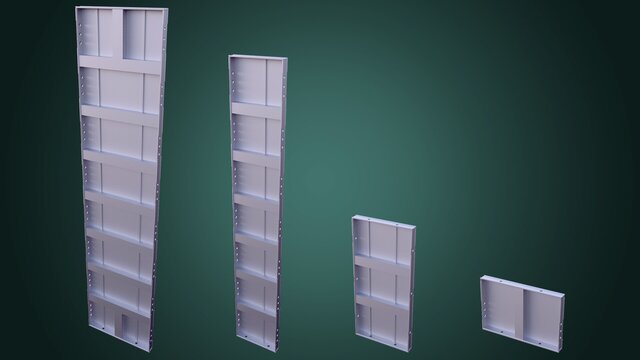

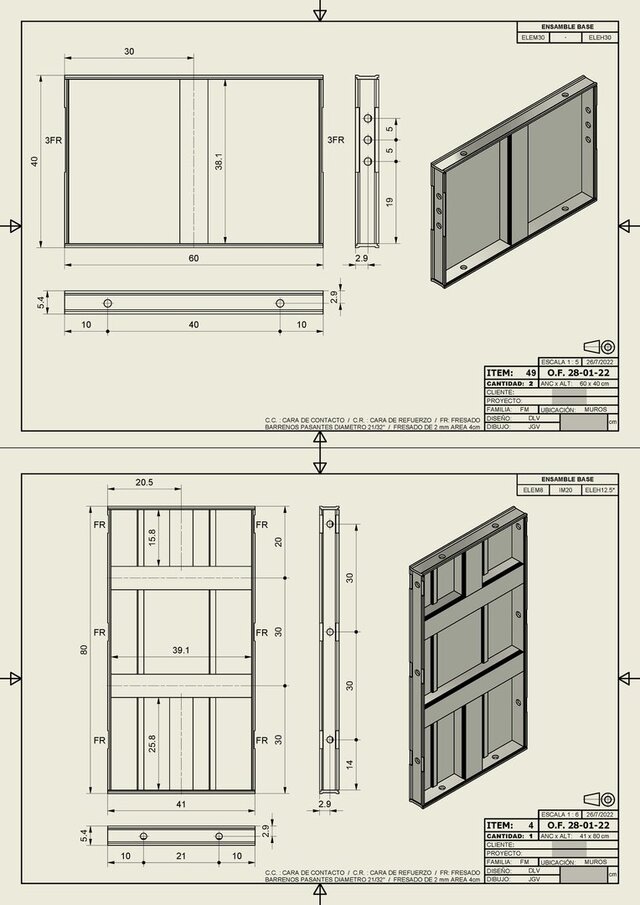

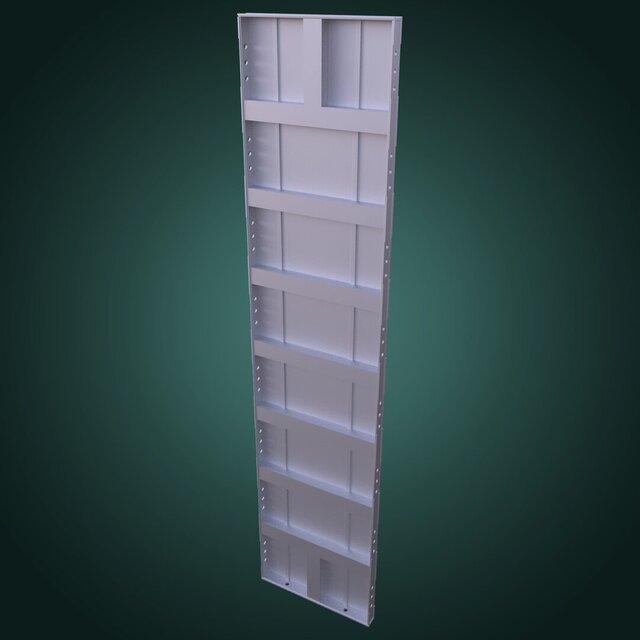

Wall formwork systems are designed to build complete house perimeters using poured concrete, ensuring dimensional accuracy and structural continuity. These formworks were modeled in 3D in Autodesk Inventor using the iLogic tool, enabling automated configuration. Through a custom dialog box, the user can input parameters that modify dimensions, machining features, and components according to the specific position each formwork will occupy within the perimeter. This parametric approach allows adaptation to different architectural designs, optimizes manufacturing, and reduces on-site preparation time.
