Wall Anchor - Injection Molding

Report

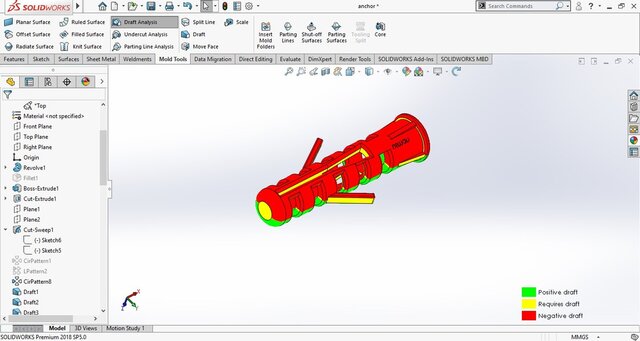

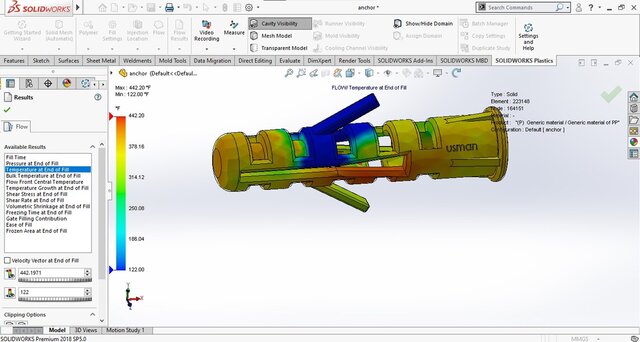

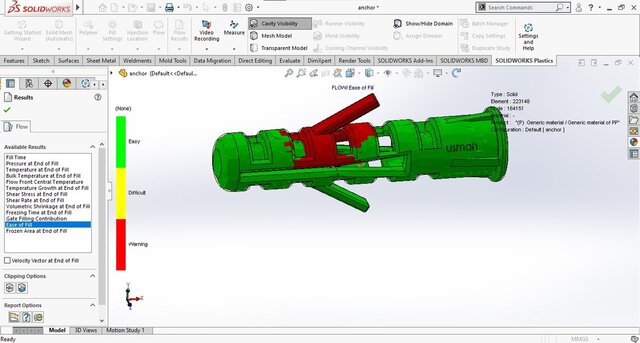

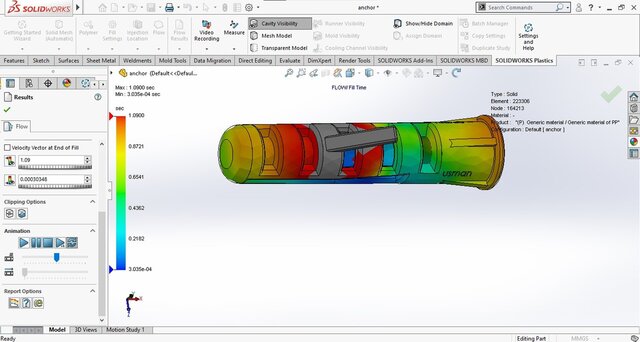

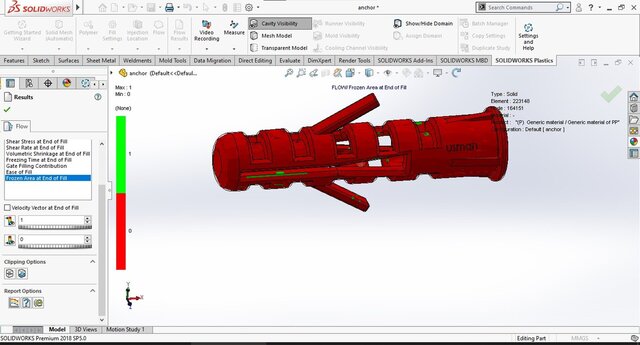

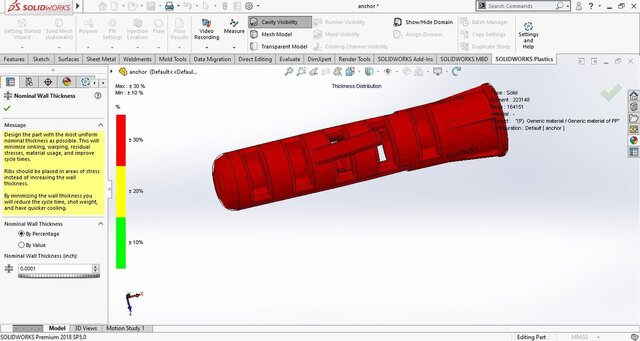

Performed a complete injection molding simulation using SOLIDWORKS Plastics on a wall anchor design. Analyzed fill time, flow front progression, wall thickness distribution, and manufacturability. The study helps optimize the design to minimize defects such as sink marks and warpage while ensuring efficient production. Includes 3D model, flow results, and thickness analysis for real-world manufacturing.
Published
in Machine Design Injection Molding Design SolidWorks Design Services
solidwokrs plastic 3d-rendering 3d-modal machanical-design
