Volumetric Food Dispenser

Report
A volumetric food dispenser that uses a food machine screw to mix then dispense the food onto the next stage on the production line. The volume dispensed is controlled by controlling the outlet (on/off) and by controlling the motor that rotates the main shaft.
Published
in Mechanical Engineering SolidWorks Design Services Mechanical CAD Design
industrial-product mechanical-3d-modeling solidworks-3d

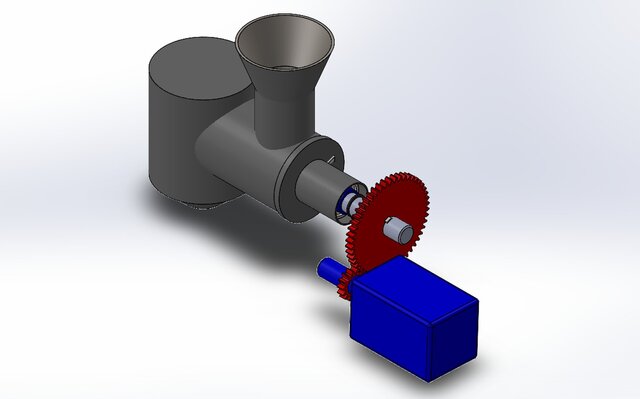

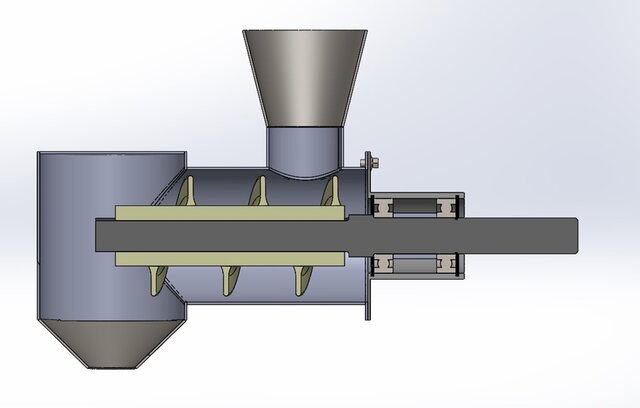

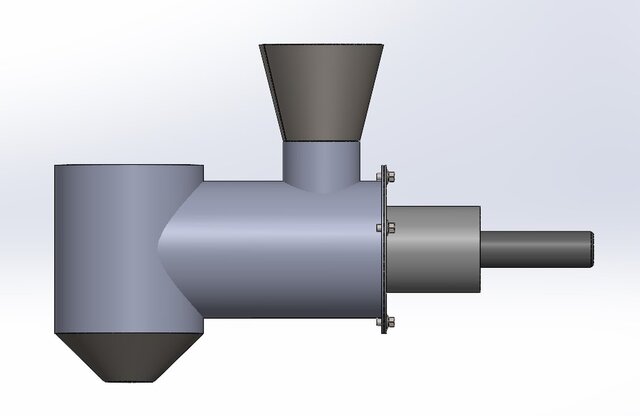

Rendering Images
