VESA Monitor Mount Plate – CAD Design (75 / 100 / 200 mm)

Report

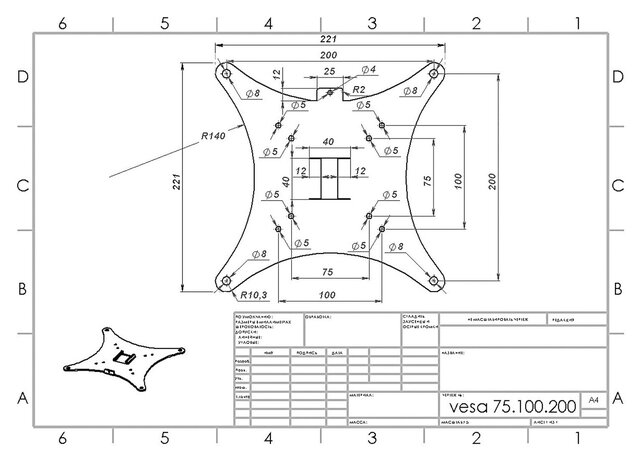

Parametric CAD design of a VESA monitor mounting plate created in SolidWorks. The model includes a detailed technical drawing and precise hole patterns for standard VESA mounting systems.
Published
in CAD Design SolidWorks Engineering Services Mechanical Design Services
laser-cut cad-desgin vesa monitor-mount

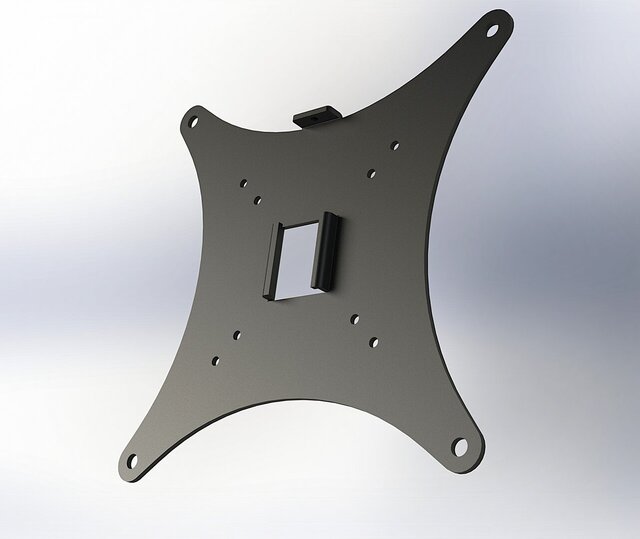

Rendering Images
