Vacuum Shell | Reverse Engineering & Technical Drawing

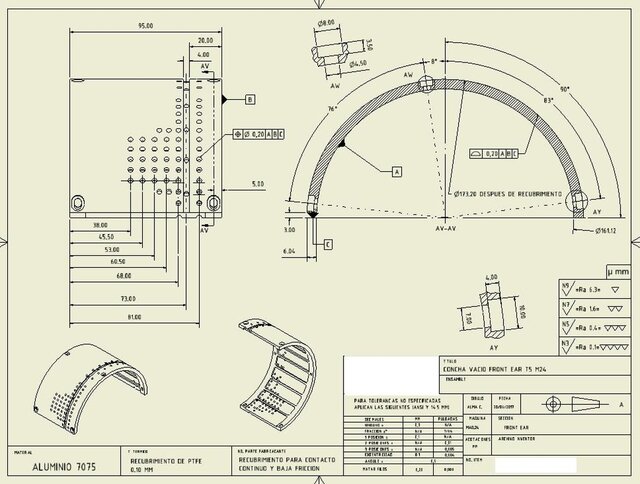

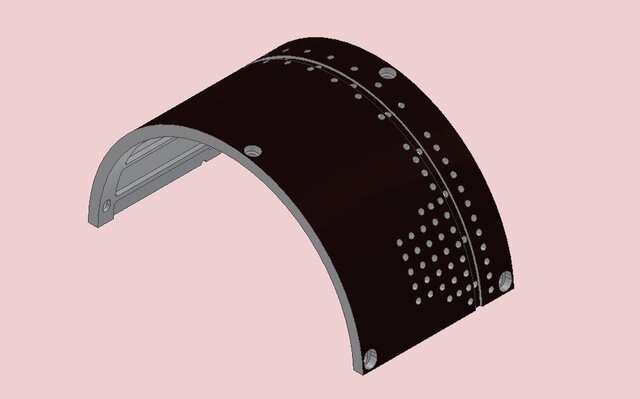

Technical drawing of a vacuum shell replacement component reconstructed through reverse engineering and modeled in Autodesk Inventor. The drawing includes dimensioned views, sections, detail views, geometric tolerances, and material and coating specifications. This project demonstrates my skills in mechanical CAD modeling and technical documentation.
