Vacuum Gantry System
Vacuum Gantry System (2-Axis) | SolidWorks ā Academic Team Project
Iām pleased to share a college team project developed using SolidWorks, focused on the design of a 2-Axis Vacuum Gantry System (XāY) for Pick & Place industrial applications.
š¹ Project Overview:

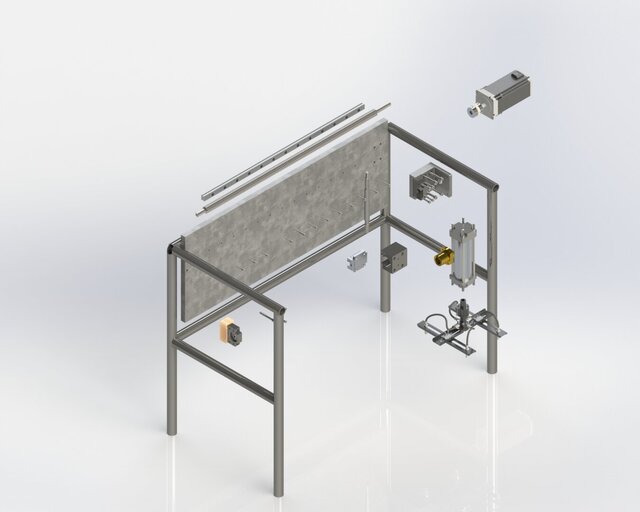

Complete mechanical design using SolidWorks (Parts & Assemblies)

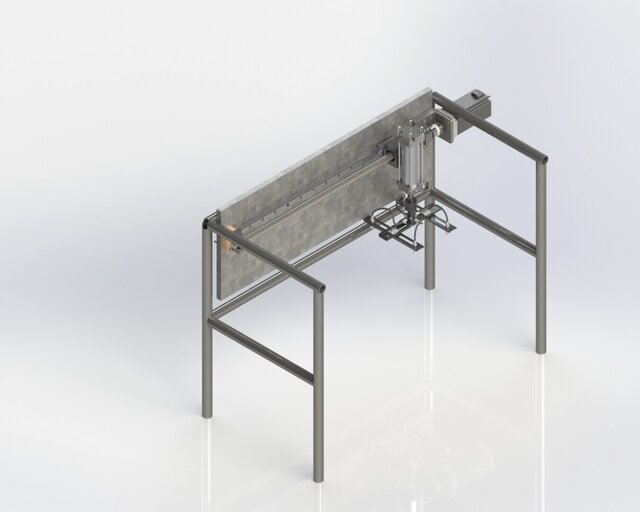

Rigid industrial steel gantry frame

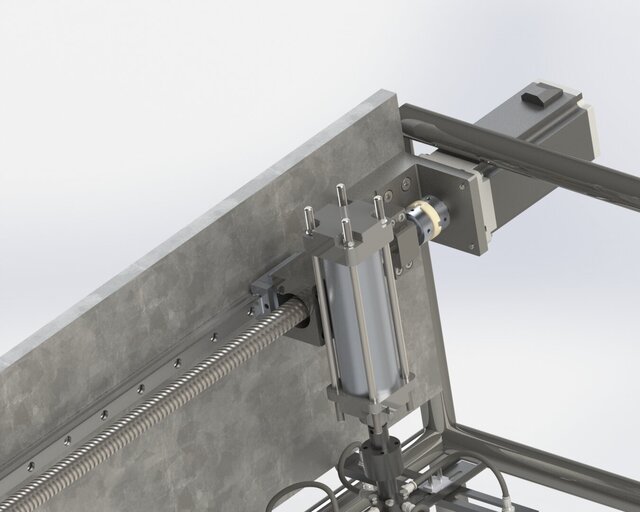

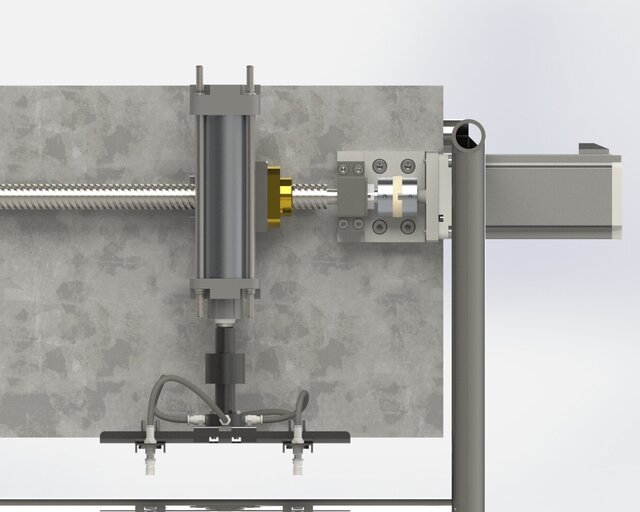

Two horizontal motion axes (XāY) with linear guides and belt drive

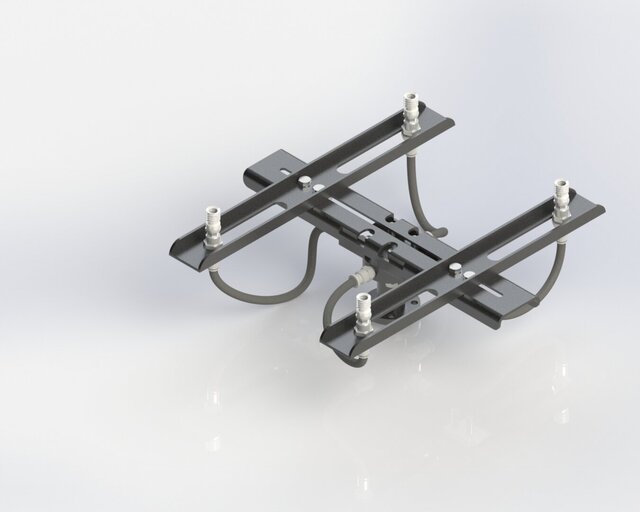

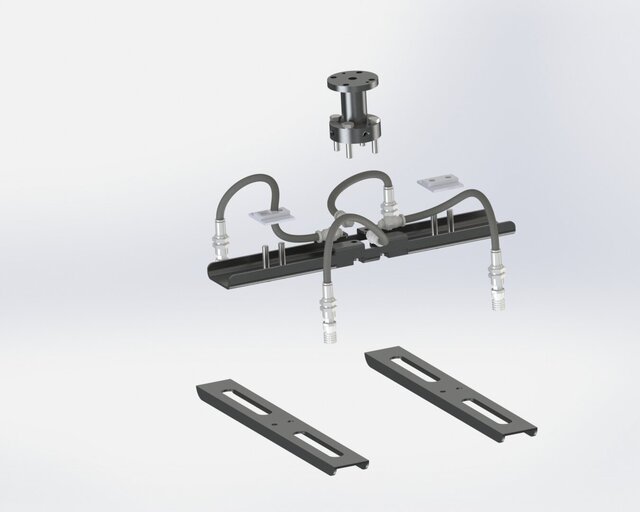

Vacuum-based gripping system with multiple suction cups
Maximum load capacity: 6.5 kg
Designed for integration with PLC & stepper motor control
Safety and maintenance considerations based on industrial standards
š¹ Project Type:
š Academic / College Team Project
š¤ Developed through collaborative teamwork with defined engineering roles
š¹ Applications:
Automated Pick & Place systems
Material handling and transfer
Packaging and sorting lines
