V6 Engine, 5-Speed Transmission & Differential — SOLIDWORKS Assembly

Report
Modeled and assembled a detailed V6 engine, 5-speed transmission, and differential in SOLIDWORKS using structured part, sub-assembly, and final-assembly workflows. The project includes gears, shafts, internal engine components, drivetrain relationships, exploded views, and motion studies to demonstrate mechanical interaction and assembly structure.
Published
in CAD Design 3D Modeling Mechanical Design Services
solidworks 3d-modeling mechanical-design

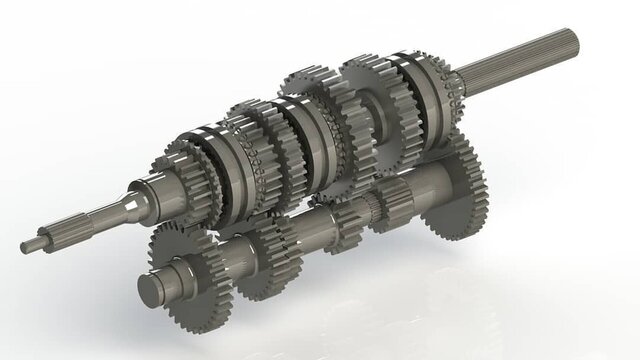

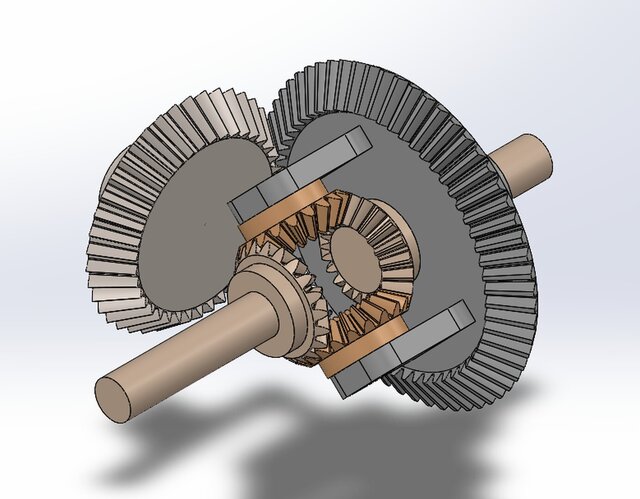

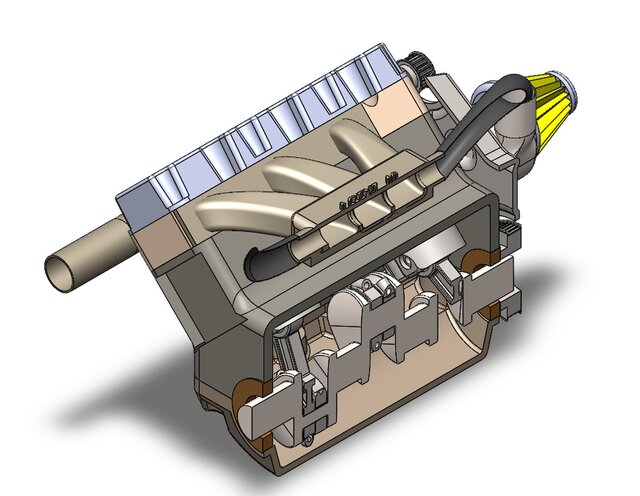

Rendering Images
