V12 engine

Report

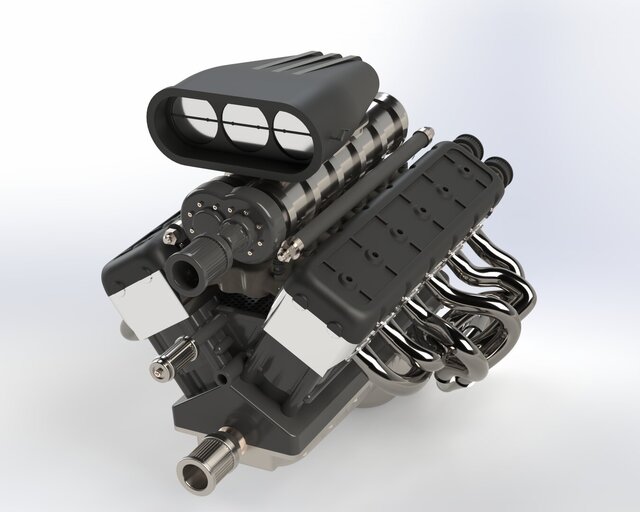

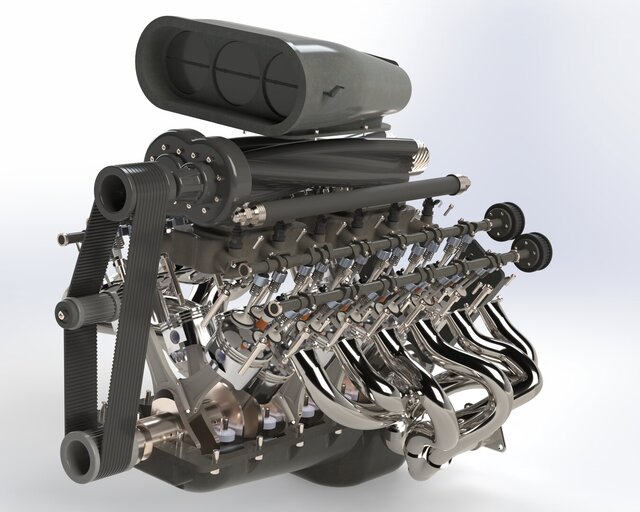

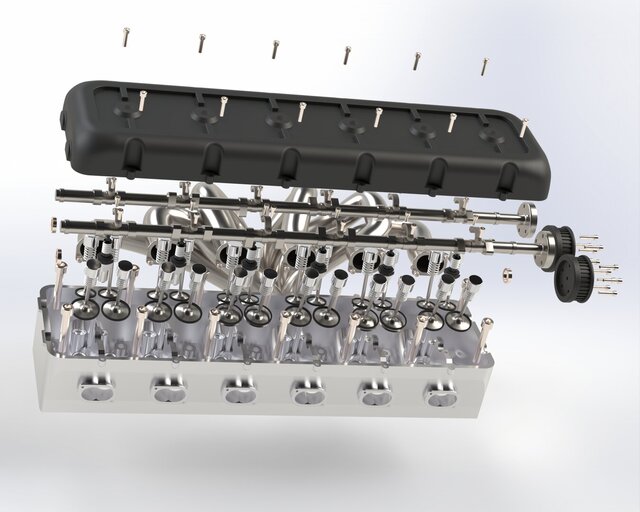

Original V12 engine design, fully modeled in SolidWorks. This is not a replica of an existing engine. It is a complete assembly of over 500 components, built to show assembly design and mechanical detail. Includes photorealistic renders and a motion study of the crankshaft and pistons.
Published
in 3D Modeling Mechanical Engineering Design for Manufacturing and Assembly
solidworks assembly 3d-modeling motion-analysis educational automobile-parts mechanical-assembly-design engine-assembly v12-engine complex-assembly crankshaft-animation
STEP/STP 3D Modeling Rendering Images
