V-Type Condensing Unit (Complete Assembly)

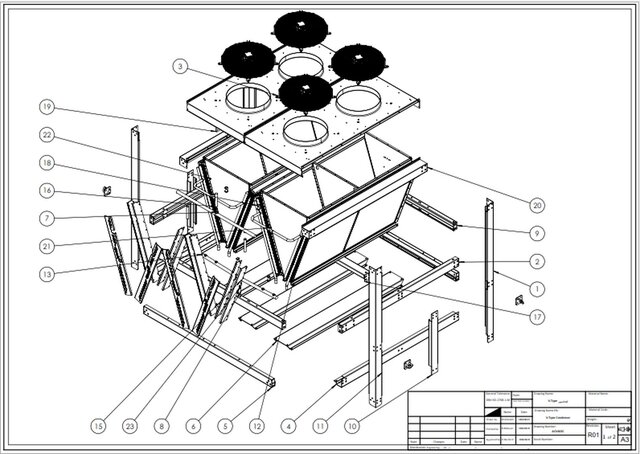

omplete engineering design of a V-Type Condensing Unit, including the full assembly of coils, axial fans, structural frame, V-shaped coil module, mounting brackets, sheet-metal panels, and support components. The project features a detailed exploded assembly, manufacturing-ready drawings, welded frame structure, coil mounting interfaces, fan panel design, and a structured multi-level BOM suitable for fabrication, laser cutting, and industrial HVAC production. Ideal for large-capacity air-cooled condenser systems and industrial refrigeration applications.
