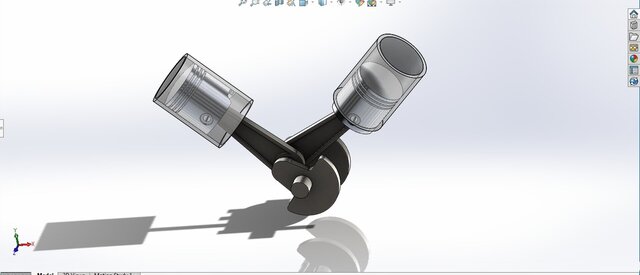

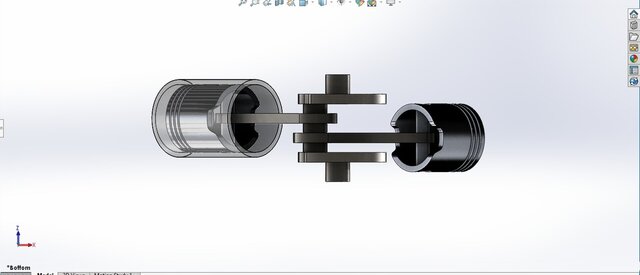

📐 Detailed Engineering Drawing | 90° V-Twin Engine Assembly Sharing the complete manufacturing drawing sheet for my 90° V-Twin Engine project — piston, connecting rod, crankshaft, and cylinder cover, fully dimensioned and detailed in SOLIDWORKS. 🔧 Isometric assembly view capturing accurate 45°/45° V-twin geometry 🔧 Individual part drawings with complete dimensioning for every component 🔧 Complete BOM table with part numbers, quantities, and material specifications 🔧 Material selection based on functional requirements: → 2024 Aluminum Alloy – Piston (lightweight, high strength-to-weight) → AISI 4340 Normalized Steel – Crankshaft (fatigue resistance under cyclic loading) → AISI 4340 Normalized Steel – Connecting Rod (combustion & inertial loading) This drawing reflects a complete part-to-assembly workflow — from individual component design through to full BOM and material justification. Feedback and suggestions are always welcome! #SolidWorks #MechanicalEngineering #EngineeringDrawing #CAD #MechanicalDesign
