Urea dosing module · exploded view and sheet-metal parts

Report

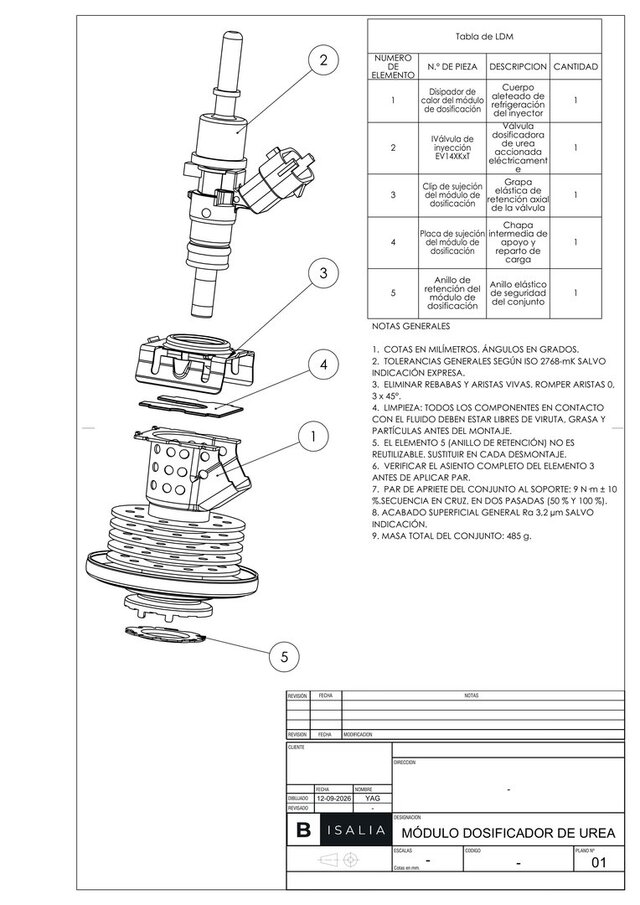

An EV14 injection valve held by a clip and a plate on an annular-finned heat sink: 56.3 across by 104.25 tall and 485 g in total. Shown here: the 3D render and the A3 exploded view with the five numbered items and the parts list, with notes on ISO 2768-mK tolerances, a 9 N·m tightening torque and an Ra 3.2 finish. I also drew a manufacturing drawing for each part.
