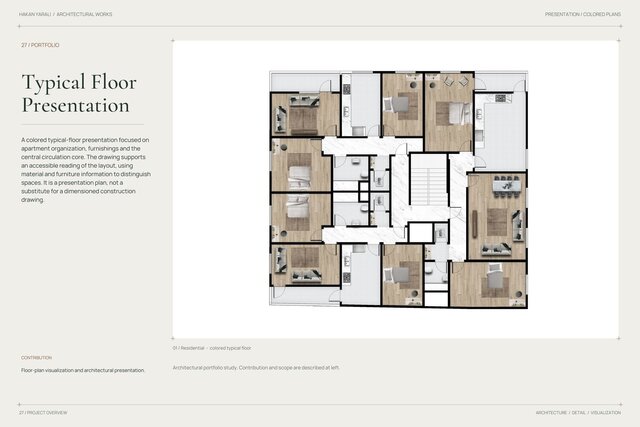

Typical Residential Floor | Colored Plan

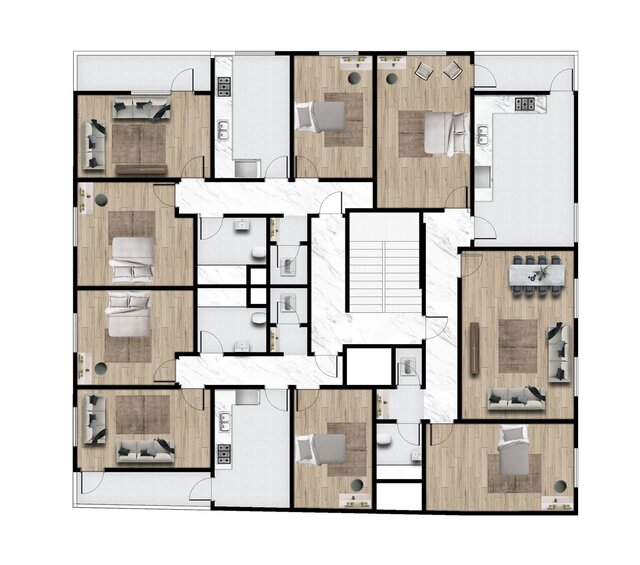

A colored typical-floor presentation focused on apartment organization, furnishings and the central circulation core. The drawing supports an accessible reading of the layout, using material and furniture information to distinguish spaces. It is a presentation plan, not a substitute for a dimensioned construction drawing.
