Turnkey Industrial 3D Printer & Mechatronics Architecture (US Patent 12,709,060 B2)

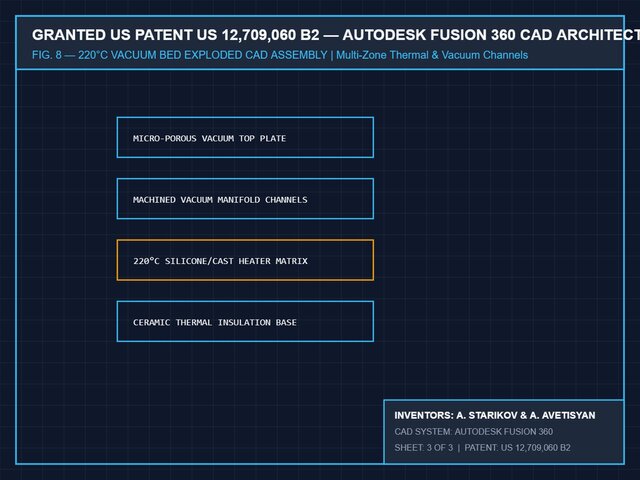

Full-scale industrial 3D printer machinery architecture designed and engineered in Autodesk Fusion 360, representing the physical hardware foundation of Granted US Patent US 12,709,060 B2 ("3D printer capable of printing with composite plastics, metal plastics, and cermet compounds"). Key Engineering Highlights: • Large-format build volume with enclosed 150°C actively heated convection chamber. • High-speed 2 m/s magnetic-rail motion kinematics with linear servo feedback. • High-precision 220°C cast aluminum vacuum workholding bed for high-temperature engineering polymers (PEEK, ULTEM, PEKK). • Modular dual-head extruder architecture with pellet/composite plastic feed systems. • Full Top-Down parametric assembly (1,000+ components), laser-cut sheet metal, welded structural frame, and precision 5-axis CNC machined components.
