Triangular Linkage Bracket with Circular Mount

Report

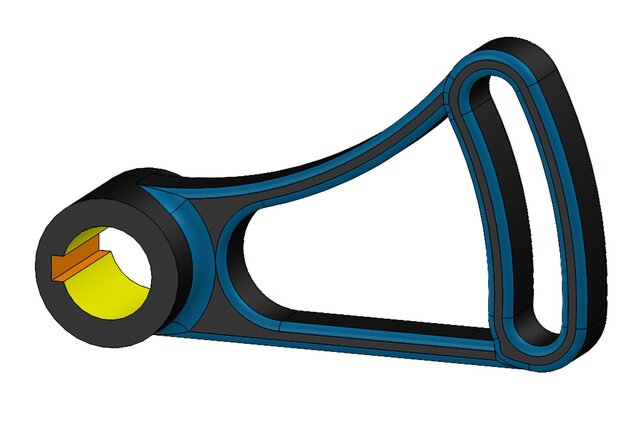

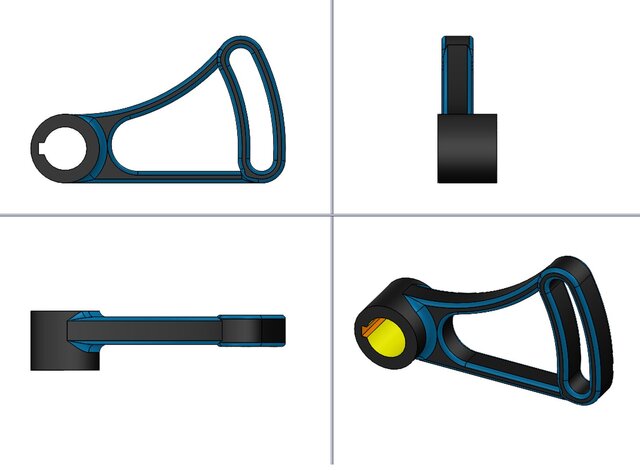

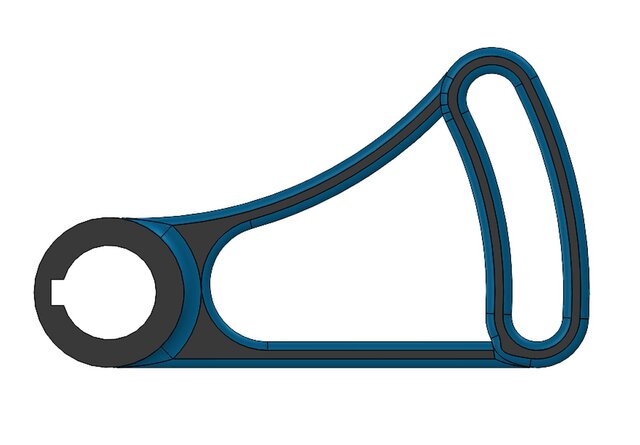

A 3D CAD model of a triangular mechanical linkage bracket featuring a circular mounting eye at the top and an elongated slot at the bottom. The frame has a curved structural design intended for lightweight mechanical support and linkage applications.
Published
in 3D Modeling Design SolidWorks Design Services Mechanical CAD Design
mechaical-engineering mounting-bracket
Rendering Images STEP/STP 3D Modeling
