Technical Firepit Design

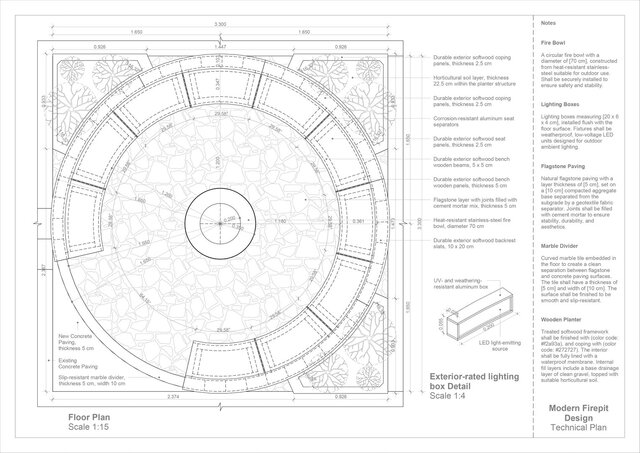

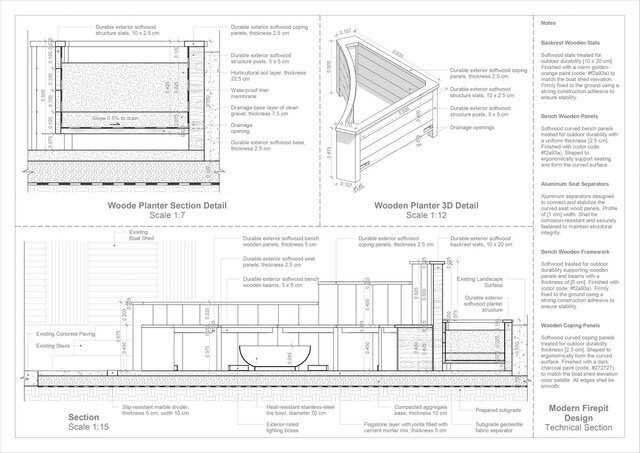

This project aimed to create detailed shop drawings for the outdoor fireplace area. The drawings illustrated the construction phases, including all details related to the ignition system, the relationships between wooden elements, and the design and insulation of planters. All elements and materials were specified according to the project requirements to transform the design into detailed drawings ready for immediate implementation on the construction site.
