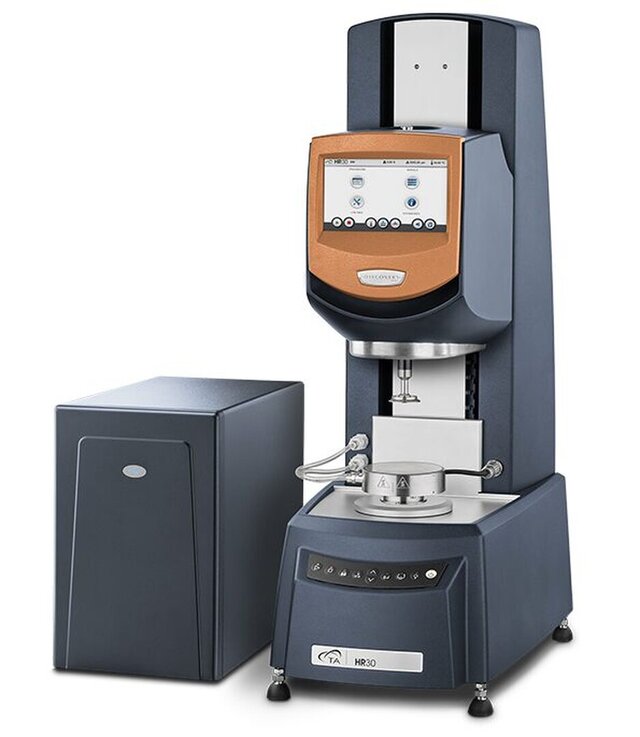

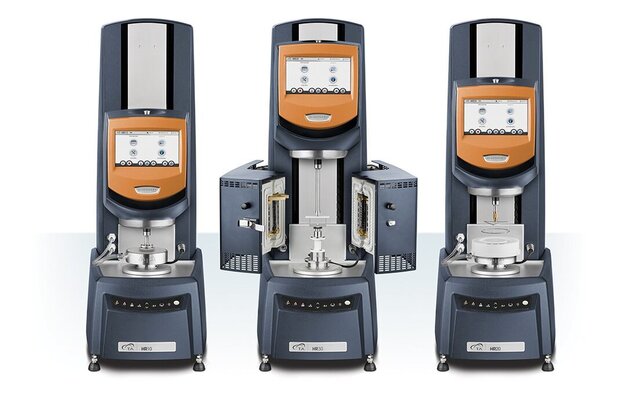

TA Instrument's Rheometer

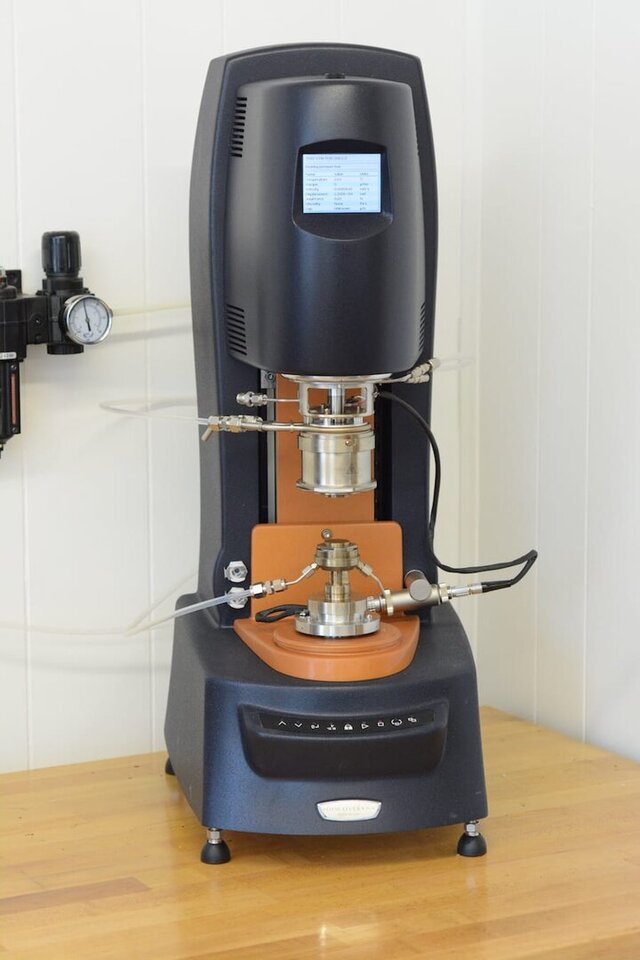

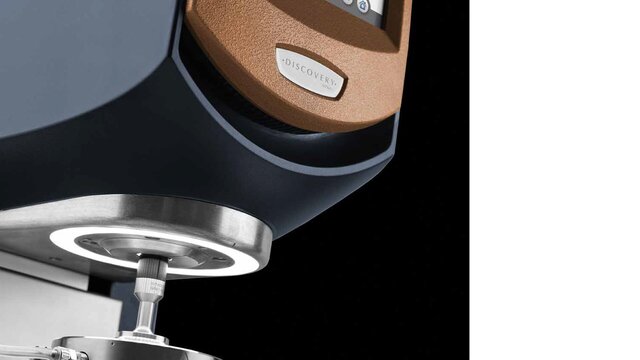

During my time at Design Design I worked on the updated DHR update. I handled all concepts and develop all CAD files for manufacturing. The head unit was especially complex with the form using both side actions and pick-outs to achieve the form. (the image at the end is the previous design.
