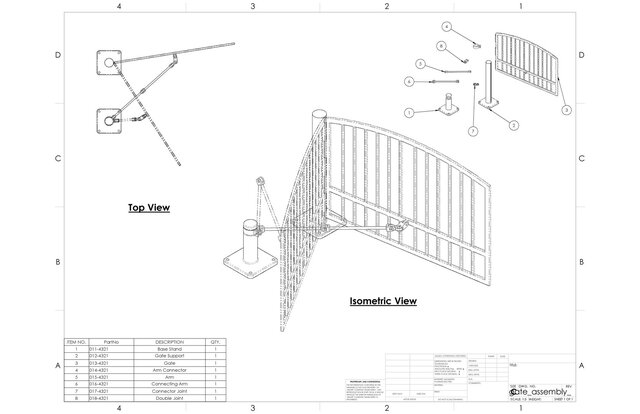

Synchronized Double-Swing Gate Mechanism
Designed and modeled a double-leaf swing gate assembly with a mechanical linkage system to ensure synchronized motion.
Focused on:
• Kinematic accuracy
• Proper assembly constraints
• Structural alignment
• Manufacturing-ready drawings
CSWE
