SWRO and Wastewater Treatment Plant (WWTP) – AutoCAD & Plant 3D Design

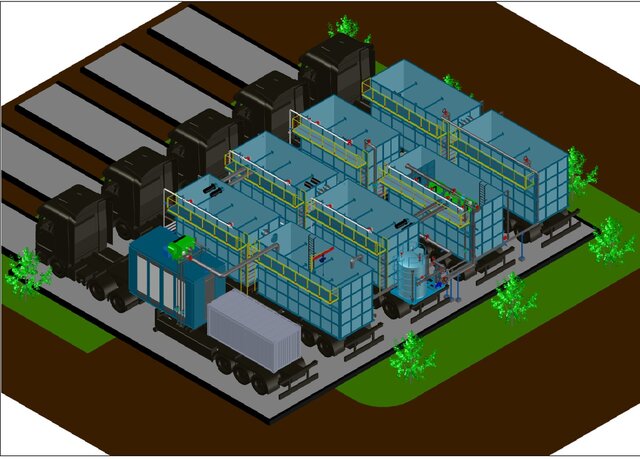

This project shows a conceptual and detailed design of a Seawater Reverse Osmosis (SWRO) and Wastewater Treatment Plant (WWTP) developed using AutoCAD and AutoCAD Plant 3D. The scope includes 3D plant layout, equipment arrangement, tanks, pumps, RO skids, piping routing, and general plant configuration. The design follows industrial drafting standards suitable for municipal and industrial water treatment facilities. This work demonstrates my capability in water treatment plant drafting, Plant 3D modelling, and preparation of clean, accurate layouts for engineering and construction purposes.
