Suspended Sliding Door Wardrobe Technical Drawings

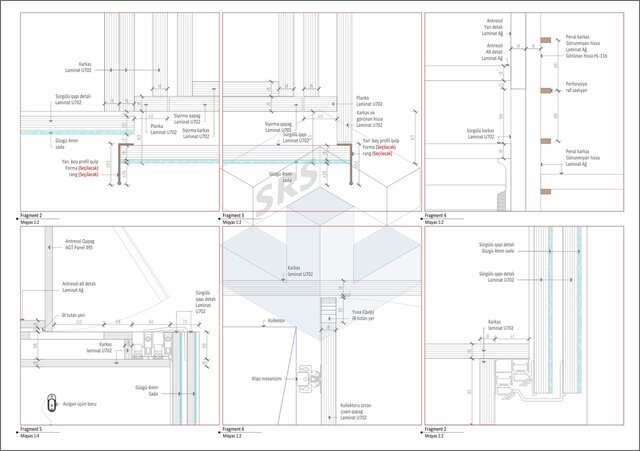

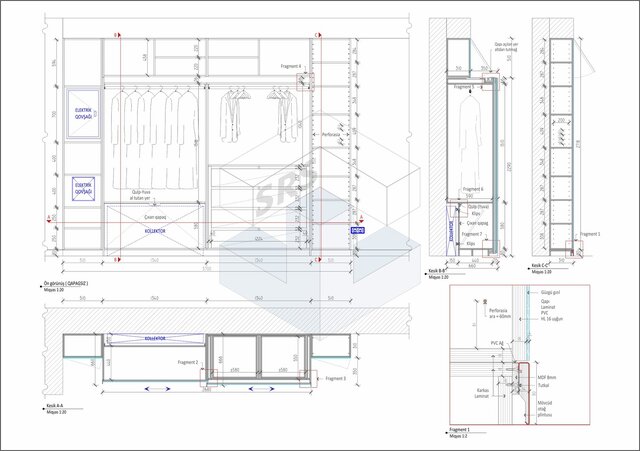

Detailed AutoCAD technical and production drawings for a custom wardrobe with suspended sliding doors. Includes elevations, sections, dimensions, internal cabinet layout, sliding door system, top rail and suspension details, panel connections, material specifications, hardware positions and installation details. Prepared as practical production-ready documentation for workshop manufacturing, assembly and installation.
