Structural Rebar Details – Slabs & Beams (Speculative)

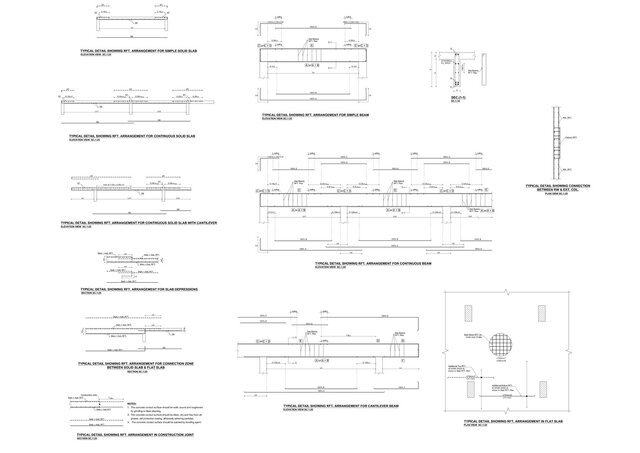

Full structural reinforcement detailing sheet for concrete slabs, beams, and connections. Created by a licensed Nigerian architect (ARCON-registered) with 7+ years in AutoCAD and Revit, this sheet demonstrates code-compliant rebar placement adaptable to ACI 318, IBC, or local U.S. standards. Key Details Included: • Simple solid slab rebar arrangement (top/bottom layers, laps, hooks) • Continuous beam reinforcement (main bars, stirrups, cantilever zones) • Slab-to-slab & slab-to-beam connection zones • Construction joint detailing with dowels and waterstops • Depression & flat slab variations • Clear callouts for bar sizes, spacing, and bending All drawings are layered, dimensioned, and annotation-rich in AutoCAD. Ready for direct integration into construction document sets or Revit structural models. Ideal for U.S. engineers needing fast, accurate detailing before PE stamping. *Speculative project for portfolio only. Not a paid client. 100% stamp-ready for local Professional Engineer (PE) review.* Tools: AutoCAD 2024 File Format: PDF + DWG (available on request) Turnaround: 3–5 days for similar real structural packages Need rebar schedules, beam elevs, or 3D BIM? Let’s build your project!
