Straight line vibration sieve shaker (preliminary design)

Report

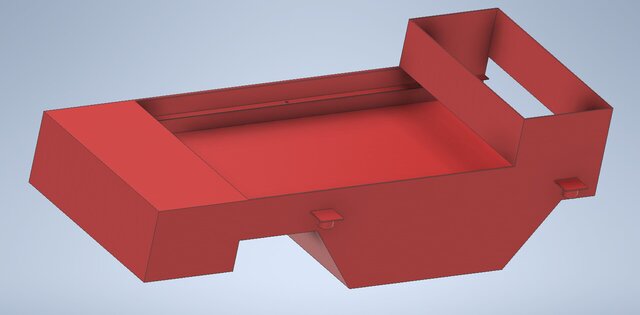

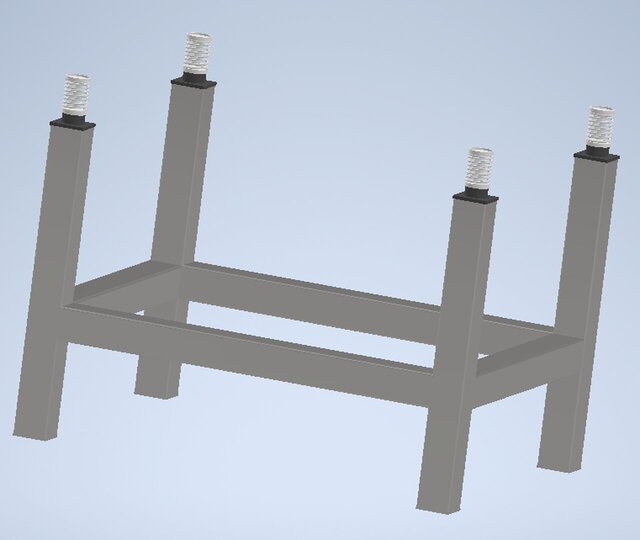

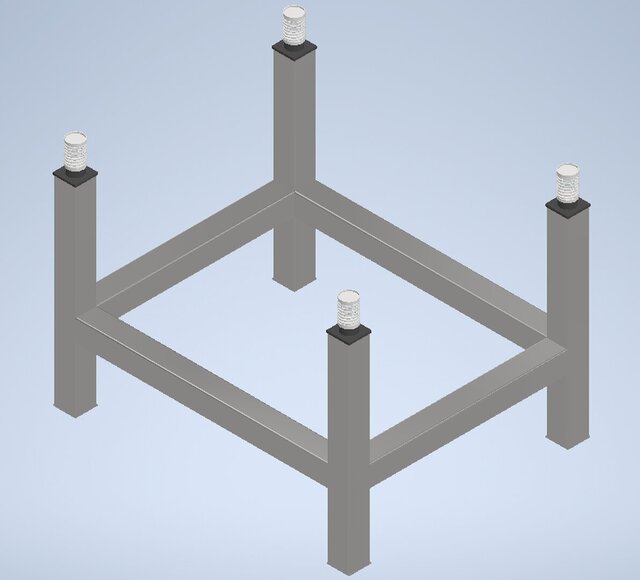

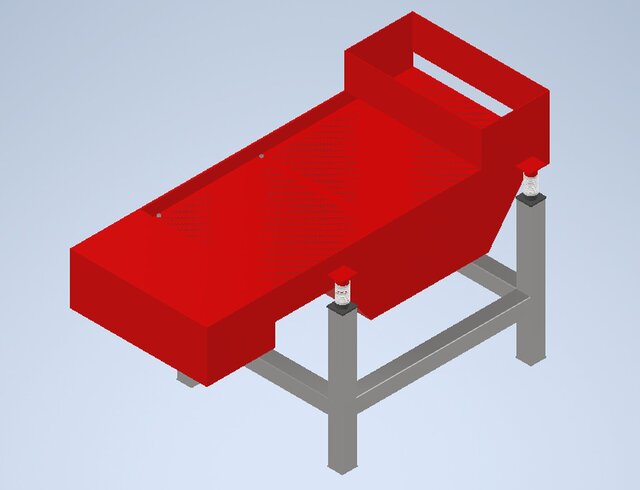

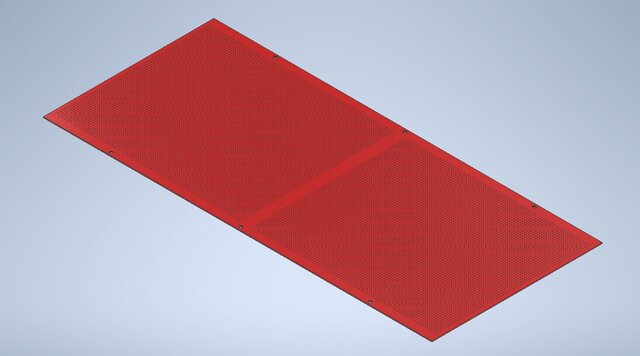

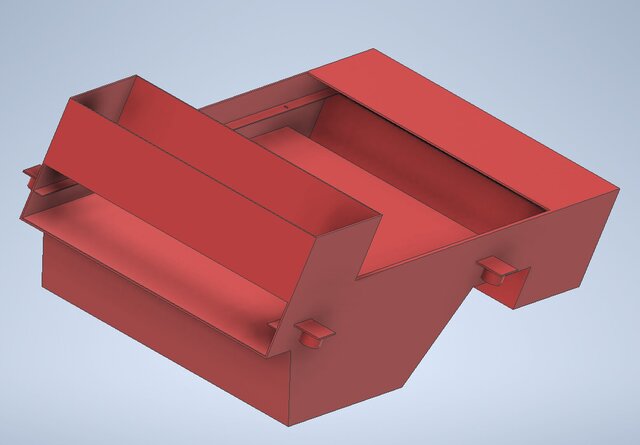

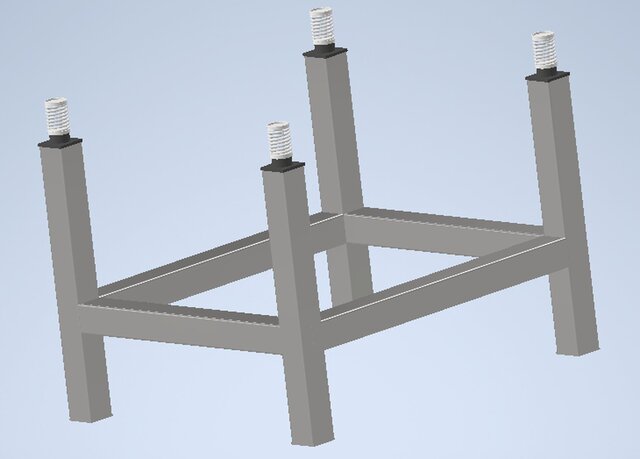

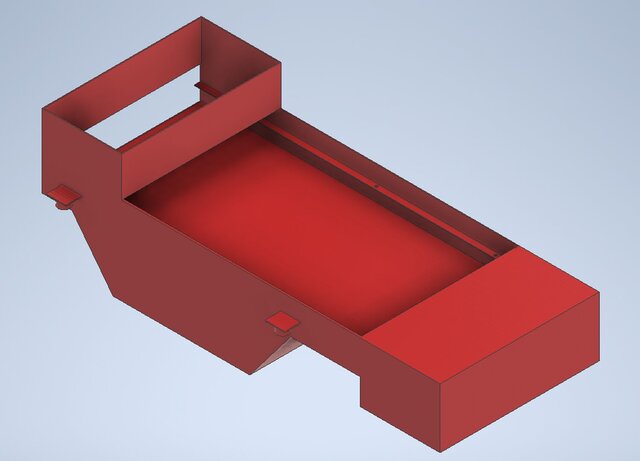

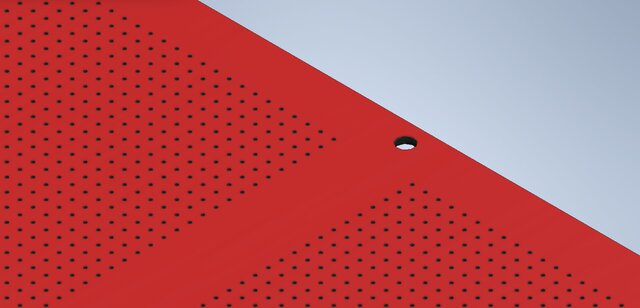

The images show some of the basic components (frame, damping springs, sieve mesh, etc.) of a preliminary design for a straight-line vibrating sieve. These components were created in Autodesk Inventor Professional 2025 software. A straight-line vibrating sieve is an essential and useful machine in processes that require the classification and separation of granular material based on particle size. This machine is widely used in processes related to mining, construction, and other industries. If you require help with the CAD design and modeling of this type of elements, you can contact me immediately and hire my services.
